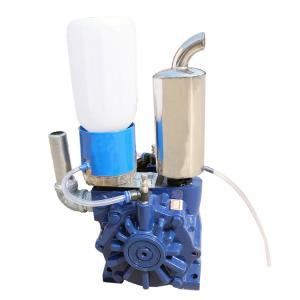

High Efficient Low Noise Modern Milking Machine 220L Vacuum Pump
Product instruction :
The vacuum pump adopts gas ballast valve which can well rule out
water vapor. The gas ballast can fill the air for exhaust
compartment, which can reduce vapor ultimate partial pressure, the
vapor will be removed. So the gas ballast can well remove the vapor
in the pump oil, which can prolong the pump service time and
prevent the mix for oil and water vapor.
vacuum pump features:
1,The rotary vane is imported from Germany with very high quality.:
2,Vacuum pump is the company's direct production, easy to control
the quality
3,install fuel valve to enable users to control fuel consumption
and improve economic performance
4,reasonable muffler design, reduce noise, reduce sound and light
pollution
5, perfect gas circulation system, stable operation.
6,comfortable and elegant appearance design.
Parameters:
| Model | Pumpingspeed L/min | Power kw | Noise dB | Ultimate vacuum Kpa | Speed r/min |
| XP220 | 220 | 1.1 | ≤50 | ≤90 | 1440 |

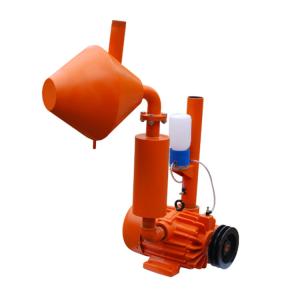

| XP1200 | 1200 | 4 | ≤70 | ≤90 | 1440 |
| XP2100 | 2100 | 5.5 | ≤70 | ≤90 | 1440 |
| XP2800 | 2800 | 7.5 | ≤70 | ≤90 | 1440 |
Application of vacuum pump
Suitable for small milking trolley or automatic milking system.
Main parts of machine:

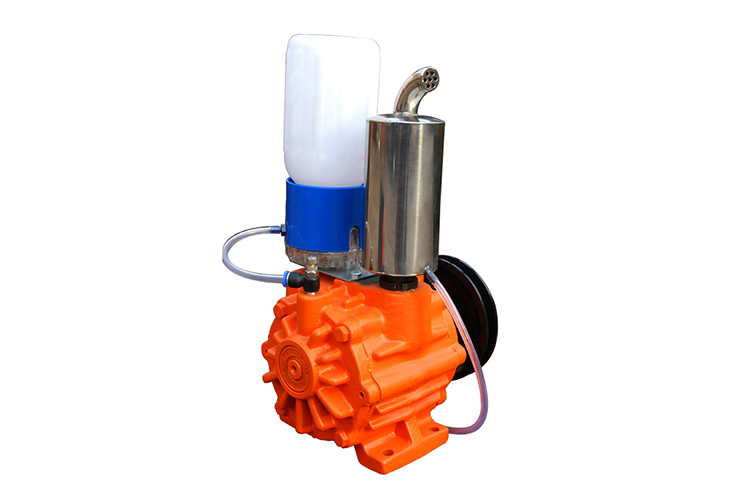

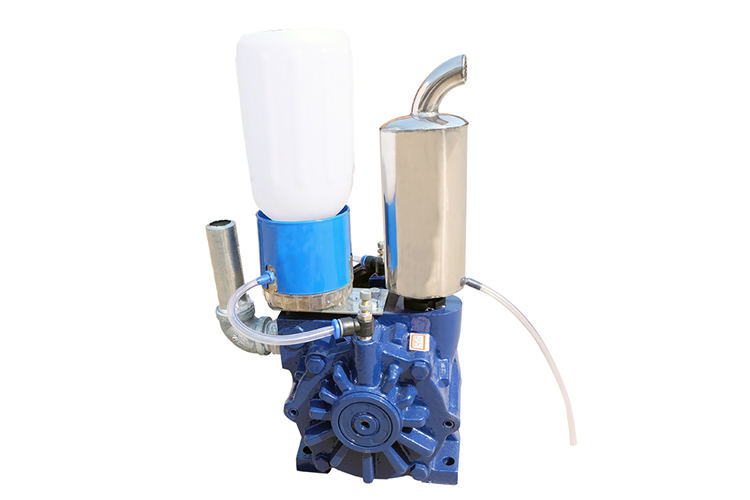

rotary vane vacuum pump mainly consists of rotary vane, rotor, pump
body, end cover, muffler, oil pipe, oil pot, throttle valve and so
on.
Certification on vacuum pump:
We have CE and ISO9001 certification for milking machine and
related farm equipment.
Related product: vacuum pump milking machine
Package and shipping:
The rotary vane vacuum pump is packed in wooden box, the bottom of
the fuselage and the wooden box are fixed with iron wire, and the
wooden box is fixed with a metal packing tape.Ten XP200 vacuum
pumps in one wooden case.The other models are one vacuum pump in
one case.
Introduction of company:

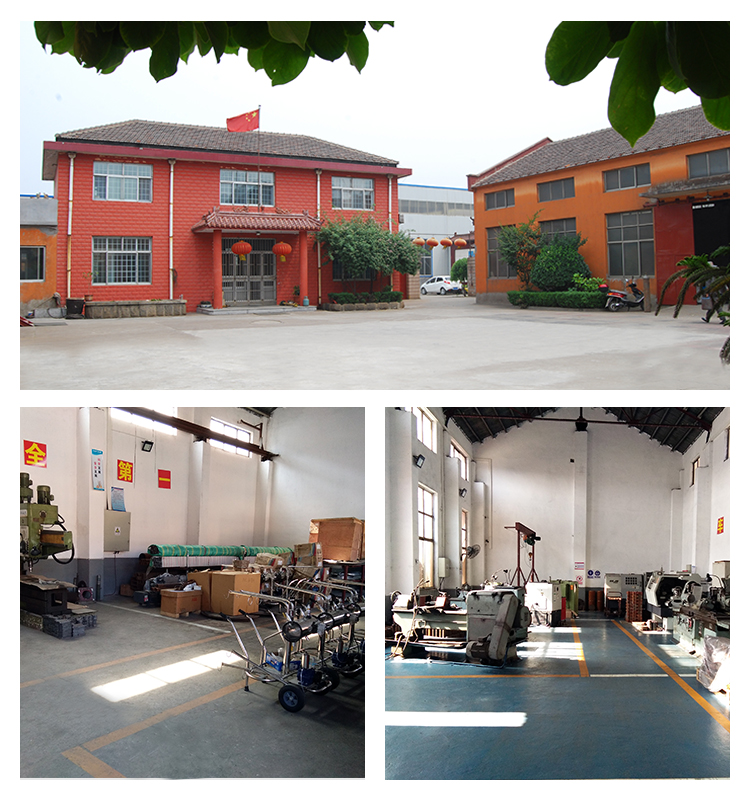

Shandong yuejiang machinery co., LTD., the company originated in
1995.good production and better service .Company develop and
product, rotary, parallel, fishbone milking machine, for large and
small cattle milking program;The quick way of milking machine,
fishbone frame and special vacuum pump are independently
manufactured by our company.;Fresh milk refrigerating tank and
other farm parts.Factory covers an area of 7000 ㎡, with a total of
eight production lines, more than 40 workshop workers.Through
continuous introduction and absorption of domestic and foreign
advanced technology to constantly improve the content of science
and technology, and strive to become the domestic first-class ranch
product suppliers.Cooperate with many famous suppliers at home and
abroad (now we are the agent of Israel afimilk China).Service,
sales, knowledge sharing and consultation are our important work.
It is a pleasure to have friends coming from afar. We are looking
forward to meeting you in boshan, a beautiful mountain city.
