AC220V Test pressure Radiator Leak Tester , Air Leak Tester
Airtight
Product main features:
a) large screen 7-inch touch screen;
b) differential pressure definition1 Pa;
c) multi-channel parameters (32 groups);
d) both manual and automatic test modes;
e) automatic self-cleaning function of the air pipes;
f) RS232 interface output;
g) USB data output; measurement value directly written into U disk;
h) sufficient remote control terminals for connecting PLC or direct
driving the external equipment (such as solenoid valve);
i) 12000 groups of data storage capacity; could be tracked by date
h) a wide range of cores to be tested
Product descriptions:

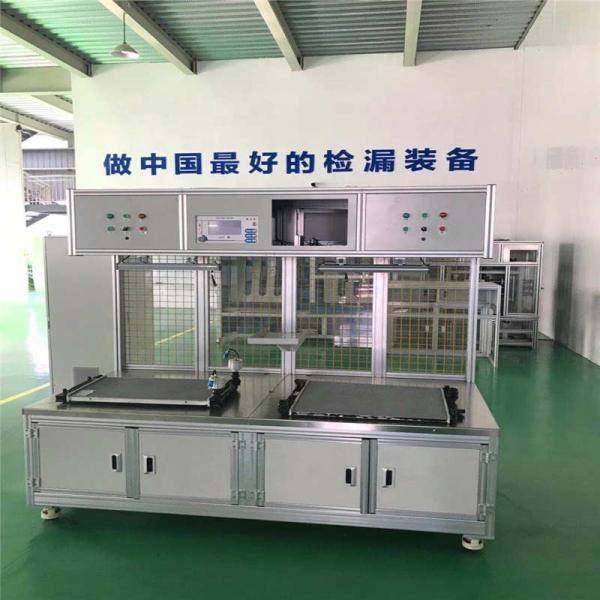

The Air tightness testing machine for condenser radiator is used to
detect the condenser tightness, automatically remove defective
products, high efficiency, has been widely used in condenser
radiator for customers to improve productivity and quality!
Product parameters:
| Parameter unit (Test pressure) | kPa,kg/cm2,psi,bar,torr |
| Parameter unit(Leak value) | Pa,Pa/s,mL/min |
| Tester size | 320(L)×400(W)×205(H) |
| Tester weight | 16kg |
| Test pressure range | 0~400KPa |
| Test pressure minimum display value | 1KPa |
| Differential pressure display range | 0~±1999Pa |
| Differential pressure minimum display value | 1Pa |
| Sensor range | 0~±2000Pa |
| Sensor tolerated pressure | 13.8MPa |
| Leak value display | 3-digit integer with Pa unit, and 2-digit integer with other units |
| Leak upper and lower limit | Below ±1999Pa |
| Parameter channel | 32 group |
| Time | 0~999S |
| Hardware | 64bitCPU |
| Power supply | AC220V±5%,50HZ |
| Air source | 400kPa~600k dry and clean air |
| Environment temperature | Working temperature: 5~40℃; storage temperature: -20~70℃ |
| Humidity | Below 80%RH, no dew |
| IO interface | Open circuit collective electrode interface and relay output |
| Testing cycle | About 1 min per core; 2 cores tested per min |
| Radiator core size | Max 800*800*48mm |
| Machine overall size | 2000*960*1900mm (L,W,H) |
About us:
Our company has been engaged in the manufacture and development of
automobile radiator condenser products for more than 15 years. Most
of the products are sold to all countries and regions in the world,
and have accumulated rich production experience.Our company is good
at manufacturing all the process of the radiator tank production
line.In recent years,many companies from other countries in the
same industry also bought the CKD from us and purchased the machine
equipment from us as well.
With the development of heat exchange industry, more and more
countries and regions are committed to building local radiator
condenser plants. With our understanding of the industry, we have
been helping foreign customers to set up radiator factories and
provide the production machine in the region in the past five
years. We provide customers with pre-sale and after-sale equipment
design and service according to the size of our products.In the
meantime we will also provide the material to our customers as
well. We will send technicians to guide the installation on site to
ensure the smooth production of the customer's factory, and provide
free consultation service in case of any doubt in the production
process.
At the same time, our company provides customers with all kinds of
radiator, condenser required hardware and plastic components.
Ensure the supply and quality of finished products.
If you are interested in setting up a radiator factory in your
place or buying any products , please contact us and we will
provide you with the best service and best price.
FAQ:
1.Why do you choose our company to buy the radiator parts?
Our company manufactures and develops hardware moulds by
ourselves,we owes over 200 different specifications moulds of head
plates ,which covers most of hot sale cars model in the market.
2.Why do you provide the producing equipment of radiator at the
same time?
Our company has over 10 years experience in manufacturing the
radiator,we are very familiar with all kinds of performance of
equipment in the process of manufacturing the radiator.We are able
to introduce the customers what’s the best equipment for them
according to our experience.
3.Does your company provide after-sales service to the equipment?
Our company has a long term working relationship with the equipment
provider,we are very happy to offer the best after-service to our
customers.
4.Does the after-sales service provided by your company have any
advantages?
Because we are also the users of equipment,we have a better
understanding in the potential problem which maybe appears in the
process of production of equipment.We can provide the fastest and
right solution for our customers.
