    PWDM Ftth Wdm Optical Receiver

    Ask Lasest Price
    Brand Name : UT-King
    Model Number : PWDM
    Certification : CE,ROHS,ISO9001
    Supply Ability : 1000PCS/Week
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

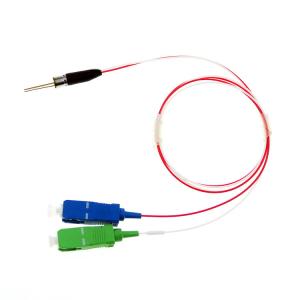

    PWDM Ftth Wdm Optical Receiver

    PWDM Bosa Module For CATV Receiver 1310nm 1490nm 1550nm Filter FWDM Module Optical Receiver FTTH PWDM


    Description

    UT-King’s PWDM is used for packaging of optical module. It can realize the multiplexing of two communication signal, which expands the capacity of single fiber and achieves bi-directional communication. It is widely used in optical network upgrade and expansion, or introduce new comprehensive business (CATV, TELECOM, integration of three networks-PON+EOC) etc.


    Features

    • Low insertion loss
    • Wide band
    • high channel isolation
    • High stability and reliability
    • Epoxy-free optical path

    Specification

    TypeFiberer-PWDM

    Operating wavelength

    T transmission wavelength

    R reflection wavelength

    nmT-1530~1620 R-1310/1550 & 1490/1310
    T1550 R1310/1490
    T1490 R1310/1550
    Transmission insertion lossdB

    0.80

    0.20

    0.30

    0.10

    0.20

    0.30

    Reflection insertion lossdB0.60
    Transmission channel isolationdB30
    Reflection channel isolationdB

    17


    PDLdB

    0.1

    0.05

    0.05

    0.05

    0.10

    Wavelength thermal stabilitynm/0.003
    Insertion loss thermal stabilitydB/0.005
    DirectivitydB55
    Return lossdB45
    Operating temperature

    -20~+70


    Storage temperature-40~+85
    Note:Customization is available.

    Ordering Information:

    ABCDE
    WavelengthTube TypeFiber Length
    (Include connector)
    ConnectorDimension
    T15R13/14=T1550 R1310/1490
    T14R13/15=T1490 R1310/1550
    T13R14/15=T1310 R1490/1550
    T1310=T1310±7.5
    X=Others
    25=250um
    90=900um
    X=Others
    05=0.5m±0.05m
    10=1.0m±0.05m
    15=1.5m±0.05m
    X=Others
    OO:None
    FP=FC/PC
    FA=FC/APC
    SP= SC/PC
    SA=SC/APC
    STP=ST/PC
    STA=ST/APC
    LP=LC/PC
    LA= LC/APC
    X=Others
    3214=Φ3.2×14mm
    X=Others

    Detailed Images

    FAQ

    Q: What does pWDM stand for?

    A: PWDM stands for "Passive Wavelength-Division Multiplexing.


    Q: How to abbreviate "Passive Wavelength-Division Multiplexing"?

    A: Passive Wavelength-Division Multiplexing" can be abbreviated as PWDM.


    Q: What is the meaning of pWDM abbreviation?

    A: The meaning of pWDM abbreviation is "Passive Wavelength-Division Multiplexing".


    Q: What is pWDM abbreviation?

    A: One of the definitions of pWDM is "Passive Wavelength-Division Multiplexing".


    Q: What does pWDM mean?

    A: PWDM as abbreviation means "Passive Wavelength-Division Multiplexing".


    Q: What is shorthand of Passive Wavelength-Division Multiplexing?

    A: The most common shorthand of "Passive Wavelength-Division Multiplexing" is PWDM.
