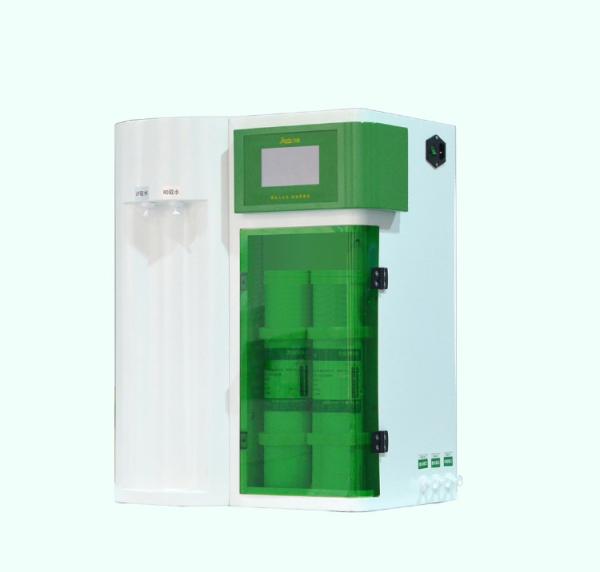

10 LPH Single Pass RO System

10L Lab Water System Ro Single Pass RO System

Flow chart

Raw water→ 1. Booster pump→ 2. Sand(multi-medium) filter→3. Active carbon filter→4. Softener (optional)→ 5. Security(micron) filter→6. High pressure pump→7. Reverse osmosis system→ 8. UV sterilizer (ozone generator) →Pure water storage tank

The technology process is divided into source water pretreatment system,reverse osmosis system and ultra-pure system
5 stage purifying system as below , purification methods and parameters to avail the purity and classify the impurities to be removed from the original water (tap water or natural one) from what one wants to generates the purified water.
1. Source water pretreatment system: PP fiber filter + AC filter + Softener
2. Reverse osmosis system: It has high removal rate more than 99% for high valent ions, colloids, bacteria and organic matter (including endotoxin) with molecular weight greater than 300Dalton.
3. Ultra pure system: Ion exchange resin using H + exchange cation out the water in the filter ,using OH- exchange anions out the water , the replaced H + and OH- combined to produce H2O, ultra-purified column filling the United States Dow UPW-450 Ultra-pure water for nuclear grade resin, the water resistance of up to 18.25 MΩ.cm

Pictures

Sichuan Leader-T Water Treatment Equipment Co., Ltd. is located in the beautiful Chengdu, China. The company covers an area of 11,000

square meters, of which the modern production workshop area exceeds 4,000 square meters. The company has a rich history of R&D, design, production, sales and service of water treatment equipment.

At present, our main business products are divided into three plates: complete sets of water treatment equipment, consumables and consumables for water treatment, electrical components and various spare parts for water treatment equipment. The business scope covers medical, pharmaceutical, drinking water production, chemical, food, beverage, wine, chip, seawater desalination, water reuse, sewage treatment and other industries, and can design and produce PPM and PPB pure water production equipment.

The company has a mature technical research and development team, has a number of technical patents and independent intellectual property rights, and has passed high-tech enterprise certification, ISO9001 quality management system certification, CE certification etc. We are very concerned about the customer's consumption experience and have an impeccable service concept. We will provide engineering design, installation guide, original manufacture production, after sales consultation and other integrated services according to customers’ requests.
