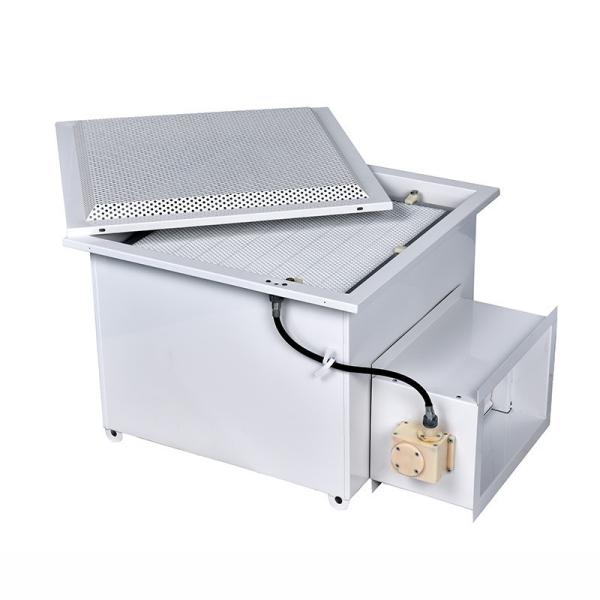

    Down Side Regulating Air Volume Damper HEPA Filter Ceiling Module

    Down Side Regulating Air Volume Damper HEPA Filter Ceiling Module


    HEPA Filter Module With Down Side Regulating Air Volume Damper


    Ceiling Hepa filter units are used in air supply or extraction applications in air conditioning and ventilation installations in rooms requiring the highest standards of air purity.

    Ceiling diffuser with a radial air discharge pattern where “room-side replaceable” HEPA or ULPA filters are required


    Application :

    Applied to the end filtration of high civilian or industrial clean site for cleanliness.such as: Electronics,semiconductor, precision machinery, pharmaceutical, hospital, food and other industries.


    The box body is made of high quality cold rolled steel sheet.

    Surface electrostatic spraying

    easy to install and maintain

    compact structure casing design as the clean room may be limited by the building's height

    side or top inlet duct for choosing

    The diffuser panels on the outlet surface are aluminium sprayed, cold rolled steel sprayed or stainless steel.



    Type for optional


    Mini pleat HEPA filter HBM

    Gel seal HEPA filter HBG

    pressure test hole HBP

    aerosol test hole HBA

    down regulating damper HBD


    Model

    Air flow

    ( m3/h )

    Mini pleat HEPA filter

    W * H * D ( mm )

    Box size

    W * H * D ( mm )

    HBM-320300 - 450320 * 320 * 96390*390*380
    HBM-484600 – 1000484 * 484 * 96554*554*380
    HBM-6301000 – 1500630 * 630 * 96700*700*380
    HBM-9152000915 * 610 * 96985*680*380
    HBM-122030001220 * 610 * 961290*680*380
