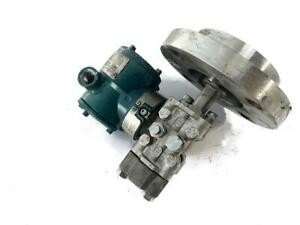

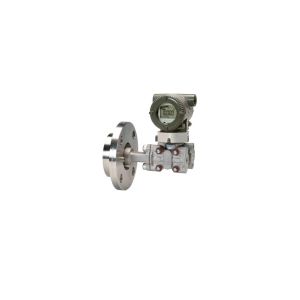

80mm Yokogawa EJA Pressure Transmitter , Flange differential level transmitter

EJA210E-JMS4G Yokogawa Flange Mounted Differential Pressure Transmitter

Description:

Manufacturer : Yokogawa
Product No. : EJA210E-JMS4G-919DN-WD23C2SW00-B/D4
Product type : EJA210E Flange Mounted Differential Pressure Transmitter
Output signal : J = 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)
Measurement span (capsule) : M = 1 to 100kPa (4 to 400 inH2O)
Low pressure side wetted parts material : S = Cover flange and process connector ASTM CF-8M,Capsule Hastelloy C-276 (Diaphragm),F316L SST, 316L SST (Others),Capsule gasket Teflon-coated 316L SST,Drain/Vent plug 316 SST
Process connections : 4 = with 1/2 NPT female process connector
Coverflange bolts and nuts material : G = 316L SST
Installation : 9 = Horizontal piping type and left side high pressure
Amplifier housing : 1 = Cast aluminum alloy
Electrical connection : 9 = M20 female, two electrical connections with a blind plug
Integral indicator : D = Digital indicator
N = Always N
Process connection style : W = Flush type
Flange rating : D2 = DIN PN10/16
Flange size : 3 = 3-inch (80mm)
Flange material : C = 316 SST
Gasket contact surface : 2 = Flat (no serration)
Wetted parts material (high pressure side) : SW = 316L SST# Diaphragm, 316 SST# Others
Flushing connection ring : 0 = None
Extension : 0 = None
Fill fluid : B = For general use (Silicone oil) , –40 to 120°C Process temperature, –40 to 85°C Ambient temperature.
Calibration units : D4 = M calibration (kgf/cm2 unit)
Weight : 9 Kg
Shipping weight : 11 Kg

Product advantages:

1.The high performance flange mounted differential pressure transmitter EJA210E can be used
to measure levels of densities of solidifying or precipitating liquids.

2.EJA210E outputs a 4 to 20 mADC signal corresponding to the measured differential
pressure. Its accurate and stable sensor can also measure the static pressure which can be shown on
the integral indicator or remotely monitored via BRAIN or HART communications.

3. Other key features include quick response, remote set-up using communications
and self-diagnostics. FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low
Power) protocol types are also available.

4.All EJA-E series models in their standard configuration, with the exception of the Fieldbus, PROFIBUS and Low Power
types, are certified as complying with SIL 2 for safety requirement.

Product applications:

Important terms:

1. Quote Validity 30 days

2. Offered product genuine and brand new.

3. Manufacturer name & country of origin: Yokogawa & Japan

4. Delivery lead time: 8-10 weeks

5. Shipping cost to us: We quote when goods ready for shipment

6. Shipping mode (Air/Sea): Air
