    SMT Full Automatic High Speed Yamaha Chip Mounter YS12 YS12F YS24 YS24X YSM10 YSM20 pick and place machine

    Ask Lasest Price
    Brand Name : Yamaha
    Model Number : YS12 YS12F YS24 YS24X YSM10 YSM20
    Payment Terms : T/T, Western Union, Paypal, Credit card
    Supply Ability : 5000
    Delivery Time : 3-5 days
    Price : Negotiable
    • Product Details
    • Company Profile

    SMT Full Automatic High Speed Yamaha Chip Mounter YS12 YS12F YS24 YS24X YSM10 YSM20 pick and place machine

    SMT Full Automatic High Speed Yamaha Chip Mounter YS12 YS12F YS24 YS24X YSM10 YSM20 pick and place machine

    Name:Yamaha YS12 YS12F YS24 YS24X YSM10 YSM20
    Brand:Yamaha
    Model:Yamaha YS12 YS12F YS24 YS24X YSM10 YSM20
    Specification:SMT PICK AND PLACE MACHINE
    Condition:original
    Quality:top qualiy
    Stock:large
    Payment:T/T before shipment
    Shipment:on-time shipment
    Warranty: 1 year
    Delivery:fedex,ups,dhl,as required
    Package:wooden case


    Specification

    1. Applicability to odd-shaped parts is reinforced.
    2. Equipped with a head with one gantry and six spindles
    3. Placement accuracy correction system(head offset,C/V offset etc.)
    4. "Applicable to Max.740(L)x460(W)(Option)PCBs for long boards applied to LEDS and displays."
    5. "It has improved actual producticity and placement quality by applying high speed and high precision electrically driven feeders."
    6. Placement Rate:30,000CPH(Optimum)
    7. Board Dimension(mm)):50(L)*40(W)~460(L)*400(W)
    8. Option: 50(L)*40(W)~760(L)*460(W)
    9. PCB Thickness:0.38mm~4.2mm
    10. External Dimension(mm): 1650(L)*1680(D)*1530(H)
    11. PCB Standard Transport Direction :Left-to-Right/Right-to-Left(Option)

    Specifications
    YAMAHA Pick and Place Machine
    Applicable PCB
    L 510 x W 460mm - L 50 x W 50mm* Option: Up to L610 mm available
    Mounting capability
    46,000CPH (The Company's optimum conditions)
    Applicable components
    03015-W 55 x L 100mm (divided recognition for over W 45mm), H: 15mm or less
    Mounting accuracy
    ±0.035 mm (±0.025 mm) Cpk≧1.0 (3σ)
    Number of component types
    Setting Plate : Max 96 types (8mm)Tray : 15 types (sATS 15 equipment)
    Power supply
    3-phase AC 200/208/220/240/380/400/416 V ±10% 50/60 Hz
    Air supply source
    0.45MPa or more, clean and dry state
    External dimension
    L 1,254 x W 1,440 x H 1,445mm (excluding protrusions)
    Weight
    1,270kg
    yamaha machine
    Model
    YSM10
    YS12
    YS24
    Applicable PCB
    L 510 x W 460mm - L 50 x W 50mm
    L510x~W460mm to L50x~W50mm
    L50mm x W50mm to L700mm x W460mm
    Mounting Capability
    46,000CPH
    36,000CPH
    72,000CPH
    Mounting Accuracy
    ±0.035 mm (±0.025 mm) Cpk>1.0 (3σ)
    +/-0.05mm/CHIP
    +/-0.05mm (μ + 3σ), +/-0.03mm (3σ)
    Number of component types
    15 types (sATS 15 equipment, Max, JEDEC)
    120 types(Max, 8mm tape reel conversion)
    120 types (Max./8mm wide tape reel conversion)
    Applicable components
    03015-W 55 x L 100mm, H: 15mm or less
    0402(Metric base) to 32*mm components
    0402 to 32x32mm MAX (Height 6.5mm or less)
    External Dimensions
    L 1,254 x W 1,440 x H 1,445mm
    L 1,254 x W 1,440 x H 1,445mm
    L1,254x W1,687x H1,445mm

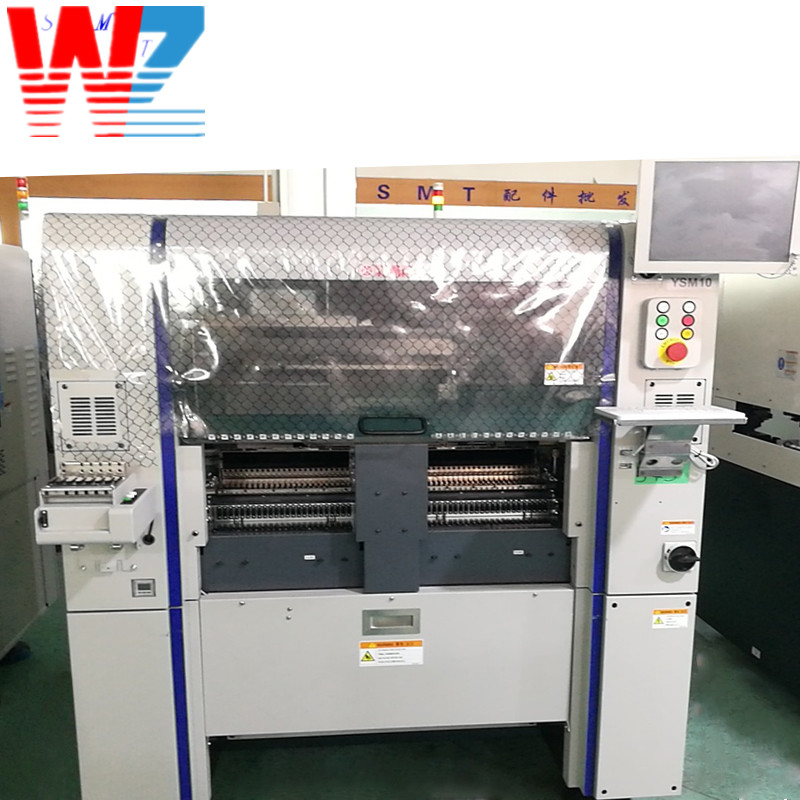

    Photo show


    Our Company

    Our company supplies different kinds of products. High quality and favorable price.
    We're pleased to get your Inquiry and we will come back to as soon as possible.
    We stick to the principle of "quality first, service first, continuous improvement and
    innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. T
    o perfect our service, we provide the products with good quality at the reasonable price.


    SMT machines and related products:
    1.SMT equipment and accessories,nozzles, feeder, feeder parts, cutter, filter, guide, tape, mortor, belt, cylinder, smt grease/lubricant, THK grease gun ,bearing,SMD parts counter,sensor etc.

    2. Nozzles & feeders&their parts for fuji, for Juki, for Yamaha, for Samsung, for Siemens, for Panasonic,for Sony....etc,all of them have large stock.

    3. We sell and recycle used SMT machine


    FAQ

    1. If machine have any problem after I receive it, how can I do ?

    Free parts send to you in machine warranty period.

    2. MOQ ?

    1 set machine, mixed order is also welcomed.

    3. How can I buy this machine from you? ( Very easy and flexible !)

    A. Consult us about this product on line or by e-mail.

    B. Negotiate and confirm the final price , shipping , payment methods and other terms.

    C. Send you the proforma invoice and confirm your order.

    D. Make the payment according to the method put on proforma invoice.

    E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

    And 100% quality check before shipping.

    F.Send your order by air or by sea.
