    10g/M2 30g/M2 Galvanized Wire Production Line Thickness 18mm

    Ask Lasest Price
    Brand Name : DIAOZHUO
    Model Number : DZ-DXX20
    Certification : CE ISO9001
    Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10sets per month
    Delivery Time : 20-30 days
    Price : variable
    • Product Details
    • Company Profile

    10g/M2 30g/M2 Galvanized Wire Production Line Thickness 18mm

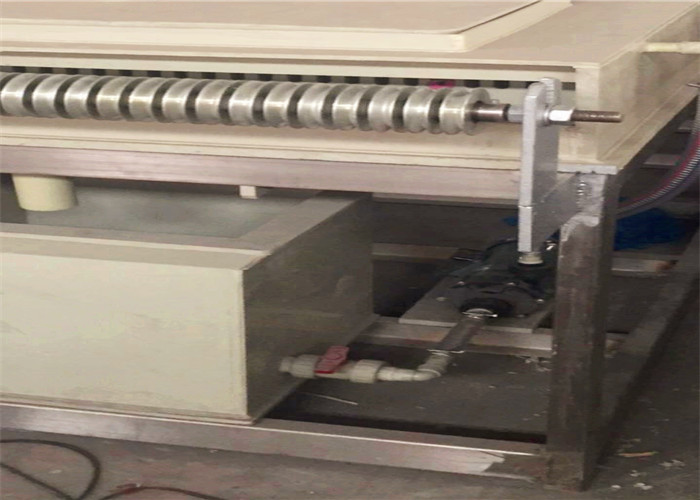

    Galvanized wire producing line zinc coating line making machine


    SPECIFICATIONS FOR ELECTRO GALVANIZED PRODUCTION LINE
    Wire Diameter
    0.6mm-1.6mm
    Wire numbers
    10 pcs
    Zinc Coating
    10-30g/m2
    Pay Off
    Vertical pay off stand
    Take Up
    Horizontal take up stand, diameter 350mm
    Tank Material
    PP, thickness 18mm
    Rectifier
    1500KVA x 2
    Production process
    Pay off → acid pickling washing → water tank → Electro galvanized tank → Air-blowing tank → cold water cleaning tank → hot water cleaning tank → Air-blowing tank → Electric drying→ Take up
    Production Capacity
    1 ton-2.5 tons/8hours

    Quality 10g/M2 30g/M2 Galvanized Wire Production Line Thickness 18mm for sale
