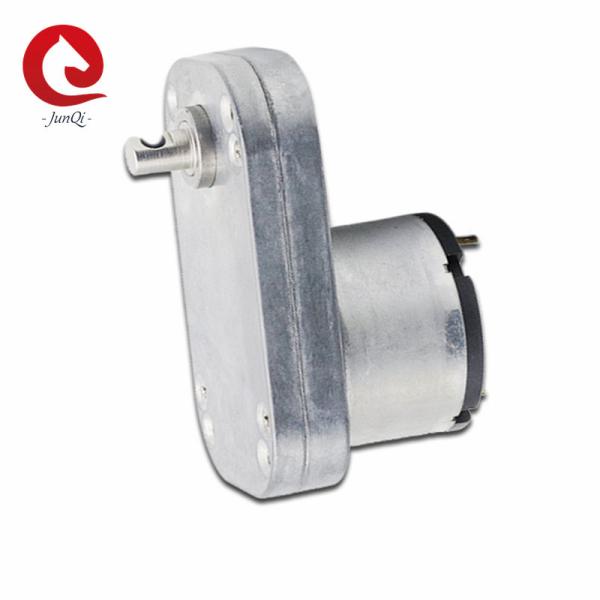

Custom 12V/24V Micro DC Reduction Motor JQM-65SS520 YYHS/YPY/YHC
Range Hood Motor
1. Main voltage: 3V, 6V, 12VDC, 24VDC
2. Typical applications: Automatic door-lock, projector,
hairdressing equipment
3. Square Gearbox size: 65*38*H12mm
4. Torque: 0.5-20kgf.cm
5. Direction: CW, CCW
6. Voltage, speed, and shaft can be customized based
7. Encoder 13PPR available
Technical Data of Gearbox:
| Reduction Stage | 3 | 4 | 5 |
| Reduction Ratio | 40.5K, 67.5K | 135K, 225K | 450K |
| Length of Gearbox "L" mm | 12 | 12 | 12 |
| Gearbox Efficiency | 73% | 65% | 59% |
Gear Motor Mechanical Size:
Driving Motor Data:
| Motor model | Rated Volt. | No load | Load | Stall |
| Current | Speed | Current | Speed | Torque | power | Torque | Current |
| V | mA | rpm | mA | rpm | gf.cm | W | gf.cm | mA |
| JQM-5200063000 | 6 | ≤27 | 3000 | ≤130 | 2600 | 15 | 0.41 | ≥100 | ≥630 |
| JQM-5200123000 | 12 | ≤16 | 3000 | ≤70 | 2400 | 20 | 0.5 | ≥90 | ≥330 |
| JQM-5200126000 | 12 | ≤54 | 6000 | ≤150 | 5500 | 15 | 0.86 | ≥162 | ≥1220 |
| JQM-52001212000 | 12 | ≤40 | 12000 | ≤135 | 9600 | 45 | 4.5 | ≥202 | ≥3780 |
| JQM-5200244500 | 24 | ≤25 | 4500 | ≤90 | 3400 | 33 | 1.4 | ≥122 | ≥350 |
| JQM-5200246000 | 24 | ≤30 | 6000 | ≤200 | 4800 | 38 | 2.3 | ≥171 | ≥660 |
| JQM-5200249000 | 24 | ≤54 | 9000 | ≤200 | 7200 | 47 | 3.5 | ≥211 | ≥1670 |
Gear Motor Electric Data:
| Model Number | Rated Volt. | No Load | At Max Efficiency | Stall |
| Speed | Current | Speed | Current | Torque | Power | Current | Torque |
| rpm | mA | rpm | mA | Kgf.cm | W | mA | Kgf.cm |
| JQM-65SS5200123000-36K | 12V | 47 | ≤50 | 36 | ≤100 | 0.8 | 0.3 | ≥300 | ≥4 |
| JQM-65SS5200123000-450K | 12V | 6.7 | ≤40 | 4.9 | ≤130 | 5.5 | 0.3 | ≥200 | ≥18 |
| JQM-65SS5200123500-225K | 12V | 15 | ≤40 | 13 | ≤220 | 5 | 0.7 | ≥880 | ≥36 |
| JQM-65SS5200124500-225K | 12V | 20 | ≤90 | 16.5 | ≤280 | 6.8 | 1.2 | ≥850 | ≥34 |
| JQM-65SS52001210000-225K | 12V | 44 | ≤130 | 35 | ≤500 | 5.2 | 1.9 | ≥1700 | ≥26 |
| JQM-65SS5200125500-450K | 12V | 12 | ≤130 | 9 | ≤360 | 12.5 | 1.2 | ≥940 | ≥49.8 |
| JQM-65SS5200249000-225K | 24V | 40 | ≤160 | 32 | ≤620 | 7 | 2.3 | ≥1300 | ≥38 |
| JQM-65SS5200246000-135K | 24V | 44 | ≤45 | 39 | ≤150 | 1.5 | 0.6 | ≥500 | ≥14.5 |
| JQM-65SS5200246000-450K | 24V | 12.9 | ≤30 | 10.7 | ≤120 | 12 | 1.3 | ≥800 | ≥45 |
| JQM-65SS5200245500-450K | 24V | 12 | ≤35 | 9 | ≤150 | 8.2 | 0.8 | ≥400 | ≥42 |
| Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in |
Notes: Above is our standard models for your reference, we can make
as customer request.
