    V8.3E Hall Free Brushless DC Motor Driver Commutator Board

    Ask Lasest Price
    Brand Name : JUYI
    Model Number : JYQD-V8.3E
    Certification : CE,
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal
    Supply Ability : 10000sets/Month
    Delivery Time : 5-10 days
    • Product Details
    • Company Profile

    V8.3E Hall Free Brushless DC Motor Driver Commutator Board

    JYQD_V8.3E Hall-Free Motor Induction Motor Control Drive Board Speed Control Board Commutator Board

    JYQD-V8.3E brushless DC motor driver board


    Application notes:

    JYQD_V8.3E driver board is bare board without housing and heatsink. If the power of the motor below 60W ,it does not need to add heatsink, It only needs to ensure normal ventilation and well insulation. If the power of the motor more than 60W, it must add heatsink like the diagram as below.

    Please take note that JYQD_V8.3E driver board has no anti-reverse connection protection, it will permanently damage the driver board if reversed polarity connection.

    The 5V output port on the driver board prohibits connect external device. It is only applicable to the external potentiometer and switch of the board for speed regulation and reversal.


    Model numberJYQD-V8.3E
    Operating temp.-20—85℃
    Operating voltage12V-36V
    Max current15A
    Cont.working current15A
    · PWM speed controlPWM frequency:1-20KHZ; Duty cycle 0-100%
    Analog voltage speed regulation0-5V
    O.V / L.V protectionYES
    Speed pulse signal outputYES

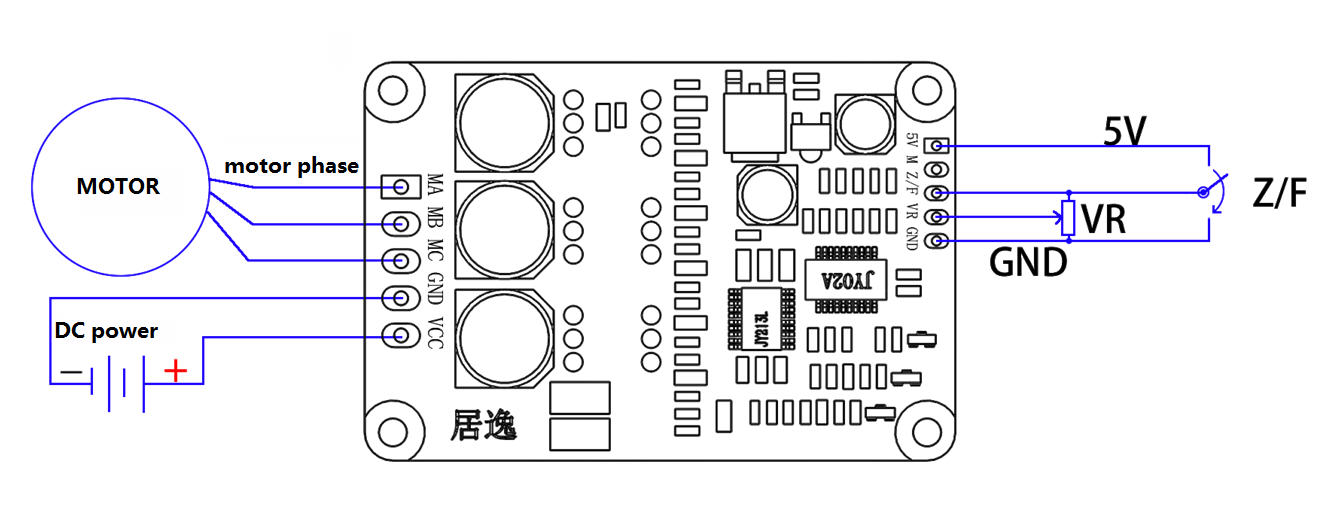

    Wiring Diagram:


    5V -----Driver board internal output voltage

    M ---- Motor speed pulse signal output port, 5V pulse signal.

    1. Control port

    Z/F---- Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or connect to GND is reverse direction.

    VR ----Speed control port. Analog voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%

    GND—Used for Drive board internal control


    2. Power port

    MA ----motor phase A

    MB ---- motor phase B

    MC---- motor phase C

    GND----DC-

    VCC----DC +

    3. Use shielded wires if the drivers board has more than 50 cm distance from the motor, otherwise it may lead to abnormal driving, affecting the normal use.


    4.Control port distance: 2.54mm,Power port distance:3.96 mm

    5. Pay attention to the insulation between the driver MOSFET and the heatsink or the installation plate.

    Dimensional Drawing:

    We can supply extra assy as connector wires and heatsink.
