JQ86STH80-4205A High Torque Hybrid Stepper Motor

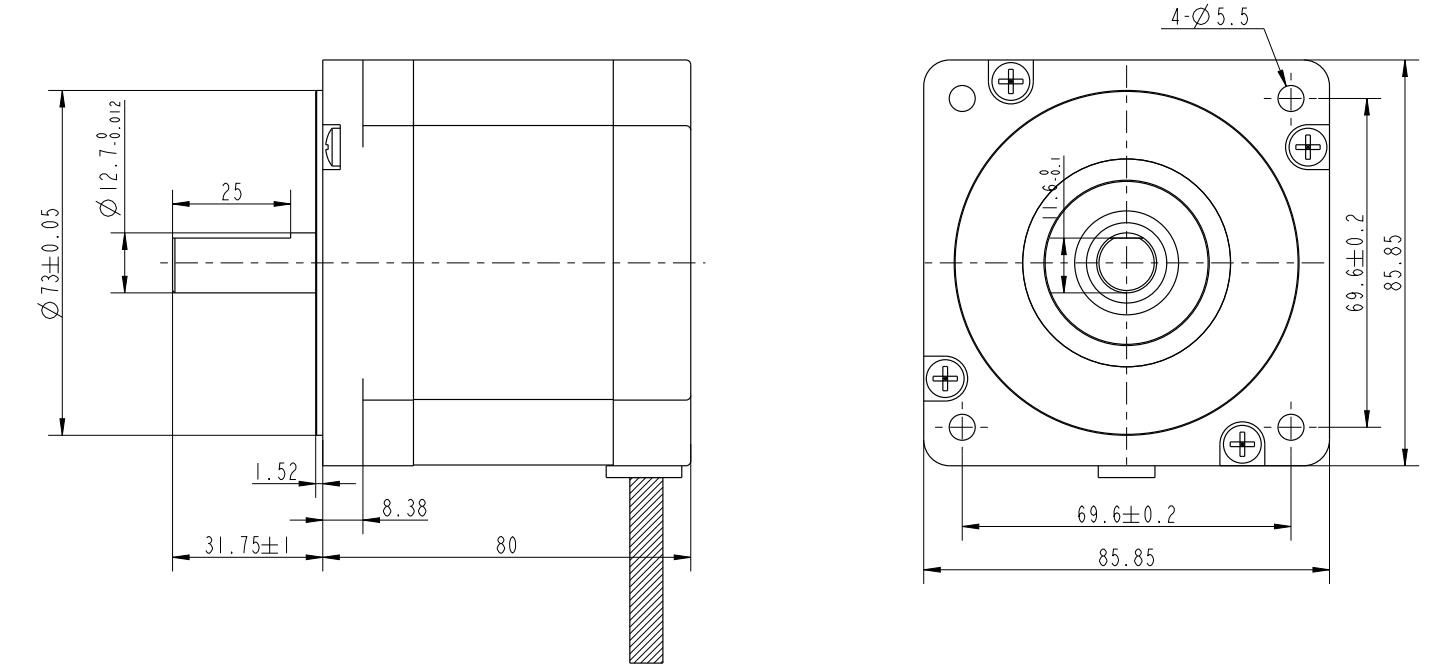

Dimensions(mm):
Electrical Specifications:
| Model | | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | Detent Toque | #Lead wires | Rotor Inertia | Length | Weight |
| Single Shaft | | A | Ω | mH | N.m | N.m | | g-cm² | mm | kg |
| JQ86STH65-2808A | unipolar | 2.8 | 1.3 | 3.9 | 2.2 | 0.08 | 8 | 1000 | 65 | 1.7 |
| series | 2 | 2.6 | 15.6 | 3.5 |
| parallel | 4 | 0.65 | 3.9 | 3.5 |
| JQ86STH80-4208A | unipolar | 4.2 | 0.65 | 3 | 3.2 | 0.12 | 8 | 1400 | 80 | 2.3 |
| series | 3 | 1.3 | 12 | 4.5 |
| parallel | 6 | 0.325 | 3 | 4.5 |
| JQ86STH118-4208A | unipolar | 4.2 | 0.99 | 6 | 6 | 0.24 | 8 | 2700 | 118 | 3.8 |
| series | 3 | 1.98 | 24 | 8.5 |
| parallel | 6 | 0.495 | 6 | 8.5 |
| JQ86STH156-4208A | unipolar | 4.2 | 1.25 | 8 | 8.4 | 0.36 | 8 | 4000 | 156 | 5.3 |
| series | 3 | 2.5 | 32 | 12 |
| parallel | 6 | 0.63 | 8 | 12 |
The motor can be designed and manufactured with customized request.
General Specification:
| Item | Specifications |
| Step Angle | 1.8° |
| Step Angle Accuracy | ±5%(full step, no load) |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max.Radial Force | 220N@20mm from the flange |
| Max.Axial Force | 60N |
| Dielectric Strength | 1200VAC/1s |
| Insulation Resistance | 100MΩ,500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Class | Class B |
