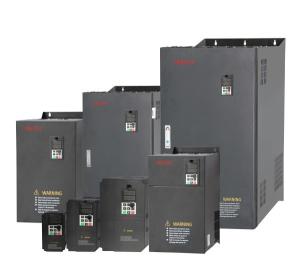

370HP AC Motor Drive Controller ac to ac 380V ac motor drive
EM15 series frequency inverter drives apply V/F vector control and
various protections to control asynchronous motors,adopting
international advanced vector control algorithm with excellent
features. The air duct, hardware and software have been greatly
improved for better environment adaptability.
Product features
Support various motor's control mode
Support V/F control, Sensor-less vector control and Closed-loop
vector control.
Support several of encoder.
Support Various keyboard display
The screen of the EM15 series inverter is a two-line display, which
can display more than 30 states such as frequency and current etc.
| Input Voltage | 220V/380V/480V±15% |
| Input Frequency | 47~63Hz |
| Input Frequency Resolution | 0.01Hz (Digital setting); maximum frequency×0.025% (Analog setting) |
| Carrier Frequency | 0.5kHz~16kHz |
| Startup Torque | G type: 0.5Hz/150% (FVC); 0Hz/180%(FVC); P type: 0.5Hz/100% |
| Speed Range | 1:100(SVC);1:1000(FVC) |
| Speed Stability Accuracy | ±0.5%(SVC);±0.02%(FVC) |
| Torque Control Accuracy | ±5%(FVC) |
| Overload Capacity | G type:150% rated current 60s; 180% rated current 3s; P type: 120%
rated current 60s;150% rated current 3s. |
| Torque Boost | Auto boost; Manual boost 0.1%~30.0% |
| DC braking | 0.00Hz~maximum frequency (DC braking frequency); 0.0s~36.0s(Braking
time); 0.0%~100.0%( Braking trigger current value) |
| Built-in Simple PLC / Multiple Speeds | It realizes up to 16 speeds via the simple PLC function or
combination of DI terminal states. |
| Built-in PID | It realizes closed loop control system easily. |
| Auto voltage regulation (AVR) | It can keep constant output voltage automatically when the mains
voltage fluctuation |
| Overvoltage/ Overcurrent Stall Control | The current and voltage are limited automatically during the
running process so as to avoid frequently tripping due to
overvoltage / over current. |
| Rapid Current Limit | To avoid frequently over current faults of the frequency inverter. |
| Torque Limit and Control | It can limit the torque automatically and prevent frequently over
current tripping during the running process. Torque control can be
implemented in the VC mode. |
| High Performance | Control of asynchronous motor and synchronous motor are implemented
through the high-performance current vector control technology. |
| Humidity | Less than 95%RH, without condensing |
| Vibration | Less than 5.9 m/s2 (0.6 g) |
| Storage Temperature | -20°C ~ +60°C |
Model
Model | Power Capacity (KVA) | Input Current
(A) | Output Current
(A) | Adaptable Motor |
|---|
KW | HP |
|---|
| Three phase 380V 50/60Hz |
| EM15-G3-d75/P3-1d5 | 1.5/3 | 5/5.8 | 2.1/3.8 | 0.75/1.5 | 1/2 |
| EM15-G3-1d5/P3-2d2 | 3/4 | 5.8/10.5 | 3.8/5.1 | 1.5/2.2 | 2/3 |
| EM15-G3-2d2/P3-004 | 4/5.9 | 10.5/14.6 | 5.1/9 | 2.2/3.7 | 3/5 |
| EM15-G3-004/P3-5d5 | 5.9/8.9 | 14.6/20.5 | 9/13 | 3.7/5.5 | 5/7.5 |
| EM15-G3-5d5/P3-7d5 | 8.9/11 | 20.5/26 | 13/17 | 5.5/7.5 | 7.5/10 |
| EM15-G3-7d5/P3-011 | 11/17 | 26/35 | 17/25 | 7.5/11 | 10/15 |
| EM15-G3-011/P3-015 | 17/21 | 35/38.5 | 25/32 | 11/15 | 15/20 |
| EM15-G3-015/P3-018 | 21/24 | 38.5/46.5 | 32/37 | 15/18.5 | 20/25 |
| EM15-G3-018/P3-022 | 24/30 | 46.5/62 | 37/45 | 18.5/22 | 25/30 |
| EM15-G3-022/P3-030 | 30/40 | 62/76 | 45/60 | 22/30 | 30/40 |
| EM15-G3-030/P3-037 | 40/57 | 76/92 | 60/75 | 30/37 | 40/50 |
| EM15-G3-037/P3-045 | 57/69 | 92/113 | 75/91 | 37/45 | 50/60 |
| EM15-G3-045/P3-055 | 69/85 | 113/128 | 91/112 | 45/55 | 60/75 |
| EM15-G3-055/P3-075 | 85/114 | 128/157 | 112/150 | 55/75 | 75/100 |
| EM15-G3-075/P3-090 | 114/134 | 157/180 | 150/176 | 75/90 | 100/125 |
| EM15-G3-090/P3-110 | 134/160 | 180/214 | 176/210 | 90/110 | 125/150 |
| EM15-G3-110/P3-132 | 160/192 | 214/256 | 210/253 | 110/132 | 150/200 |
| EM15-G3-132/P3-160 | 192/231 | 256/307 | 253/304 | 132/160 | 200/250 |
| EM15-G3-160/P3-200 | 231/250 | 307/385 | 304/377 | 160/200 | 250/280 |
| EM15-G3-200/P3-220 | 250/280 | 385/430 | 377/426 | 200/220 | 280/300 |
| EM15-G3-220/P3-250 | 280/355 | 430/468 | 426/465 | 220/250 | 300/370 |
| EM15-G3-250/P3-280 | 355/396 | 468/525 | 465/520 | 250/280 | 370/400 |
| EM15-G3-280/P3-315 | 396/445 | 525/590 | 520/585 | 280/315 | 400/420 |
| EM15-G3-315/P3-355 | 445/500 | 590/665 | 585/650 | 315/355 | 420/500 |
| EM15-G3-355 | 500 | 665 | 650 | 355 | 500 |
| EM15-G3-400 | 560 | 785 | 725 | 400 | 530 |
| EM15-G3-450 | 630 | 883 | 820 | 450 | 600 |
| EM15-G3-500 | 800 | 920 | 860 | 500 | 660 |
Application
Machine tool
Operating frequency can be up to 3000 Hz, suitable for drilling
machine and carving and milling machine.
Big cutting forces, steady speed and high precision.
Can stable operation at high speed.
Terminal RS485 support 500k communication rate.
Various vector control can be applied to all kinds of machine
tools.
Plastics processing /Extrusion processing
Standard inverter cabinet with injection molding signal card.
Energy saving cabinet built in inverter and bypass.
Built in charging function to support mode of contract saving
energy.
Extrusion force is big, Avoid tripping, uniform extruding flow.
Quickly and strong force output, Multiple pumps have good
synchronization performance.
High energy-saving rate, with conversion of inverter and grid
power.
