    ASTM B603 Diameter 10mm Ni80cr20 FeCrAl Alloy For Metallurgy

    Ask Lasest Price
    Brand Name : TANKII
    Model Number : 0cr25al5
    Certification : ISO9001,SGS
    Price :
    Payment Terms : L/C, T/T, Western Union,paypal
    Supply Ability : 50 tons/month
    Delivery Time : About 7-10 days after getting the payment
    • Product Details
    • Company Profile

    ASTM B603 Diameter 10mm Ni80cr20 FeCrAl Alloy For Metallurgy

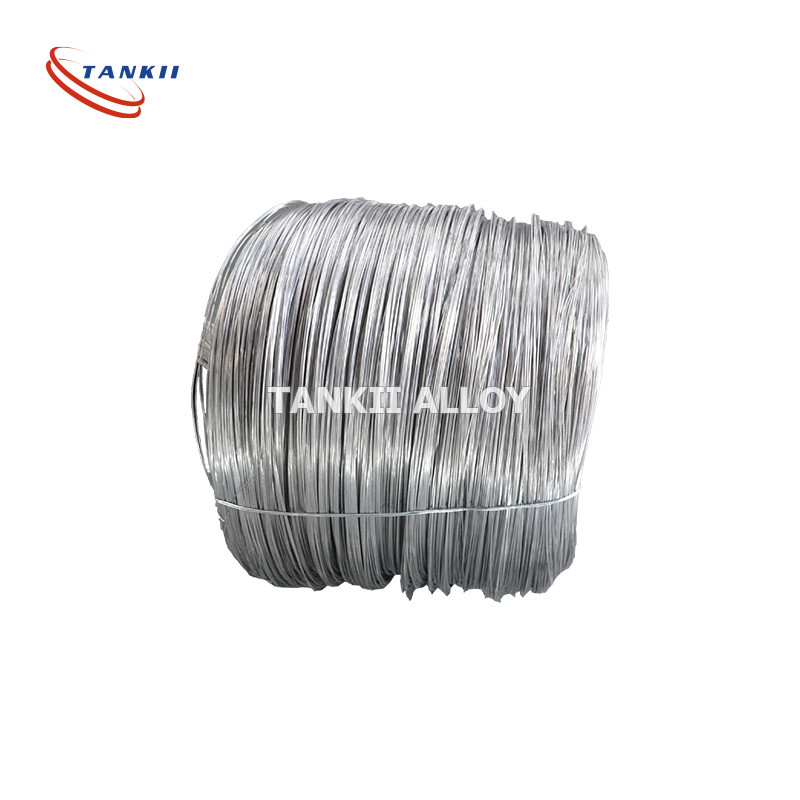

    Electric Resistance Heating Round/Flat Wire NiCr/FeCrAl Alloy Ni80Cr20, 0Cr25Al5
    ConditionBright / Acid White / Oxidied Color
    Diameter0.018mm-1.6mm in Spool, 1.5mm-8mm in Coil, 8mm-60mm in Rod
    Round Wire Diameter0.018mm - 10mm
    RibbonThickness 0.01-2mm, Width 0.5-5mm
    StripThickness 0.001-7mm, Width 1-450mm
    Grade1Cr13Al4, 0Cr25Al5, 0Cr21Al6, 0Cr23Al5, 1Cr20Al3, 0Cr21Al6Nb, 0Cr27Al7Mo2
    Production StandardASTM B603, DIN 17470, JIS C2520, GB/T 1234
    CharacteristicsStable Performance, Anti-Oxidation, Corrosion Resistance, High Temperature Stability,
    Excellent Coil-Forming Ability, Uniform and Beautiful Surface Condition without Spots
    UsageResistance Heating Elements; Material in Metallurgy; Household Appliances;
    Mechanical Manufacturing and other industries.
    Nichrome's metallurgical structure confers them a very good plasticity when cold
    Our AdvantagesHigh Quality, Short Delivery Time, Small MOQ

    Main Characteristics of Nichrome Resistance Wires:

    Alloy Nomenclature Performance1Cr13Al40Cr25Al50Cr21Al60Cr23Al51Cr20Al30Cr21Al6Nb0Cr27Al7Mo2
    Main
    Chemical
    composition
    Cr12.0-15.023.0-26.019.0-22.020.5-23.518.0-21.021.0-23.026.5-27.8
    Al4.0-6.04.5-6.55.0-7.04.2-5.33.0-4.25.0-7.06.0-7.0
    Reopportuneopportuneopportuneopportuneopportuneopportuneopportune
    FeRestRestRestRestRestRestRest
    Nb0.5Mo1.8-2.2
    Max. continuous service temp. of element950125012501250110013501400
    Resistivity at 20ºC (μΩ·m)1.251.421.421.351.231.451.53
    Density (g/cm3)7.407.107.167.257.357.107.10
    Thermal conductivity(KJ/m·h·ºC)52.746.163.260.246.946.145.2
    Coefficient of lines expansion(α×10-6/ºC)15.416.014.715.013.516.016.0
    Melting point (approx.)( ºC)1450150015001500150015101520
    Tensile strength (N/mm2)580-680630-780630-780630-780600-700650-800680-830
    Elongation at rupture (%)>16>12>12>12>12>12>10
    Variation of area(%)65-7560-7565-7565-7565-7565-7565-75
    Bending frequency (F/R)>5>5>5>5>5>5>5
    Hardness(H.B.)200-260200-260200-260200-260200-260200-260200-260
    Continuous Service Time(Hours/ ºC)--≥80/1300≥80/1300≥80/1300≥80/1250≥80/1350≥80/1350
    Micrographic structureFerriteFerriteFerriteFerriteFerriteFerriteFerrite
    Magnetic propertiesMagneticMagneticMagneticMagneticMagneticMagnetic

    Magnetic
