Flexible Print-on-demand Book Binder For Digital Book Production
✈ Standard Configurations
Digital Robot 2000C is our latest innovation of flexible
print-on-demand book binding solution for digital book production.
It features on fully automatic adjustments through touch screen, short changeover time for varied binding formats, exchangeable EVA gluing tank and PUR gluing tank, and flexible combination of different modules. It is available for inline connection with web printing machines
or digital printing machines and paper processing machines. Even
very short runs can be produced quickly and in an economical way.
Digital Robot 2000C binder is a fully automatic four-clamp perfect
binder with maximum mechanical speed of 1500 cycles per hour. It is the latest state-of-the-art innovation, which offers a top
quality adhesive binding solution with convenient operation, short
make-ready time and high flexibility.

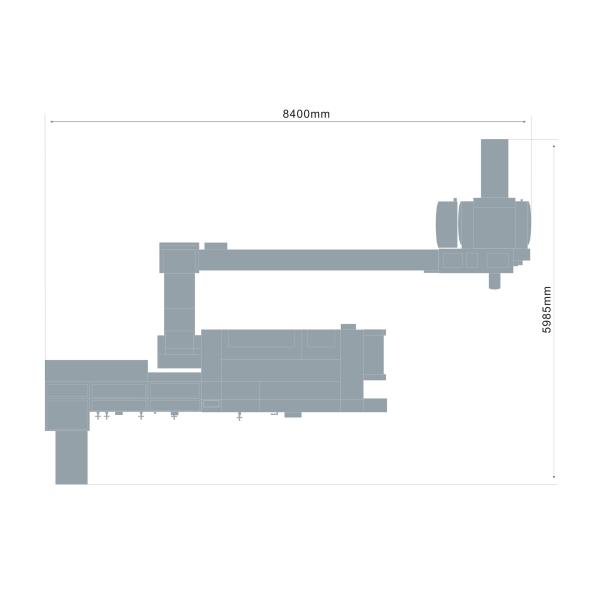

| Standard Configurations | Quantity (pcs) |
| Vertical Turning Module | 1 |
| Robot Arm | 1 |
| Digital Robot 2000C Binder (Hotmelt EVA Version) | 1 |
| DS-50 Digital Stacker | 1 |
| DT-30 Three-Knife Trimmer | 1 |
| Conveyor for connecting DS-50 Stacker and DT-30 Trimmer | 1 |
- No manual operation is needed. All setups and adjustments can be
done automatically just by inputting data into the touch screen.
- When book binding format is changed, all adjustments of the binder
could be automatically finished within 30 seconds.
- The control system can memorize up to 56 orders and retrieve them,
as requested.
- The wide transparent machine covers offer a clear view of all
operations.
- With the moveable EVA spine gluing station, operator can easily
replace it by the PUR gluing application system in just a few
minutes.
- The special designed soft book lay-down system can maximally
protect the just bound book spine from any slight deformation.
✈ Specifications
Machine Model
Digital Robot 2000C Binder
No. Of Clamps
4
Max. Mechanical Speed
1600c/h
Book Block Length (a)
140-320mm
Book Block Width (b)
120-270mm
Book Block Thickness (c)
3-50mm
Cover Length (d)
140-450mm
Cover Width (e)
240-600mm
Power Required
28kw
| Technical Data |
| Machine Model | Digital Robot 2000C Binder |
| No. Of Clamps | 4 |
| Max. Mechanical Speed | 1600c/h |
| Book Block Length (a) | 140-320mm |
| Book Block Width (b) | 120-270mm |
| Book Block Thickness (c) | 3-50mm |
| Cover Length (d) | 140-450mm |
| Cover Width (e) | 240-600mm |
| Power Required | 28kw |
✈ Details
A digital central control system
The icon-based touch screen in the binder serves as a central
control system that can control all the modules and monitor their
working status, and also serves as an error indicator to help
maintain smooth operation.
A book block feeding station
After the book block is fed into the book clamp, vibration will be
applied to vibrate the book spine. The height of book block feeding
station can be adjusted.
Four automatic adjusted book clamps
The pneumatic controlled book clamps can be automatically adjusted
according to the book block thickness.
An automatic adjusted milling station
Opening width of milling pressure plate is automatically adjusted by step motor.
Function: milling and notching, brushing.
Milling depth: 0~3mm.
If milling function is not needed, just switch the milling handle
to lower the milling station, so that book blocks are not to be
milled.
An automatic adjusted moveable spine gluing station
Spine gluing tank is moveable, and could be changed by JMD Twin
Roller PUR glue tank or Nordson PUR nozzle glue tank as option. The spine gluing length and thickness are adjusted automatically.
An automatic adjusted side gluing station
Opening width of two side gluing rollers is automatically adjusted.
An automatic adjusted cover feeding station (quadruple cover
scoring)
The side gauges of cover feeding station and position of cover
scoring wheels are automatically adjusted. Sensitive double-feed or
miss-feed cover defection device is installed to ensure accurate
cover feeding.
An automatic adjusted nipping station
Openning width of nipping plates and the width of side gauges are automatically adjusted.
