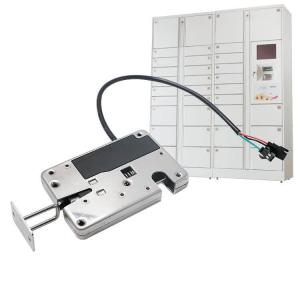

24V 100mA 4.5rps/S Cabinet Door Locks Waterproof For Freezer
Our products KR-S98 electronic 24v cabinet lock is used in fresh cabinets, vending kiosk locker, express cabinets, electricity meter box, storage cabinets, etc.
Product parameters:
| Model | KR-S98A |
| Size | 98*66*13.3 mm |
| Name | Waterproof Freezer Lock |
| Weight | 175g |
| The material | 430 stainless steel+ABS+PC |
| Working voltage | DC8V-DC24V |
| Working current | 100mA@12V |
| Maximum power | 1.2W |
| Response time | Less than 20ms |
| Working temperature | -40℃ ~ +65℃ |
| Working humidity | 5% ~ 85%RH |
| Working life | 500,000 times |
| Door weight | 4KG~50KG |
| Test | Salt spray testing 48 hours |
| Application | Delivery cabinet /Sauna locker/School locker/Gym locker/ Vending
machine etc |
| Certification | CE; FCC; RoHS |
| OEM | Accepted |
Product Main Features:
1. Support 12V & 24V, motor drove, more stable and Lower power
consumption.
2. Lock case is made from deactivated 430 stainless steel,
anti-force performance as 300kgs.
3. Can be waterproof. The IP rating is IP66. All electronic parts
are protected in the sealed ABS box.
4. Built-in push block helps push the door, thrust can be adjusted.
5. Lock hook detection function.
6. Mechanical emergency lever, can be unlocked manually in the
condition of power failure.
7. AWG24 wires with PVC protecting tube.
8. Support customizing wires and connectors.
Product Details
Our Services
1. Free samples available
2. Products can be customized, OEM/ODM
3. Free consultation for technical exchange
4. Product replacement, as long as the product is the problem
Feel free to contact us for more information, we sincerely welcome your inquiry.
