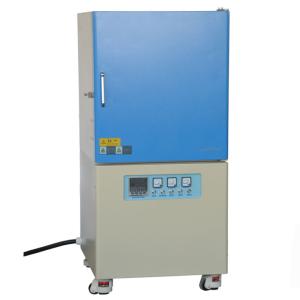

Lab 1200C - 1800C High Temperature Sintering Klin Muffle Furnace
This box furnace uses high-quality electric resistance wire as
heating element, double-layer shell structure and 30-stage program
temperature control system. The furnace is made of alumina
polycrystalline fiber material, and the double-layer furnace shell
is equipped with air-cooling system, which can be quickly upgraded.
Cooling, and has the functions of over-temperature, break-off,
over-current protection, etc. The furnace has the advantages of
temperature field balance, low surface temperature, fast
temperature rise and fall, energy saving, etc. It is a
high-temperature sintering and metal annealing of universities,
research institutes, industrial and mining enterprises. The ideal
product for quality testing.
Software control system (optional): The furnace is equipped with
communication interface and software. It can directly control the
parameters of the furnace through the computer, and can observe the
temperature display of the furnace and the operation of the
instrument from the computer. The actual temperature rise curve of
the furnace It will be drawn in real time, and the temperature data
at each moment can be saved and recalled at any time.
Features
1. Furnace material: It adopts alumina fiber furnace material,
which does not drop powder, has good heat preservation performance,
high reflectivity, balanced temperature field, and strong
resistance to heat expansion and contraction.
2, heating elements: All use high-quality resistance wire, silk
surface load is low, long service life.
3, using Yudian program temperature control instrument
1) 30-stage program temperature control can only be adjusted by
PID.
2) With over-temperature protection, the electric furnace heating
circuit is automatically cut off when the temperature is
over-temperature or broken, (when the electric furnace temperature
exceeds 1200 degrees or the thermocouple is blown, the AC relay on
the main circuit will be automatically disconnected, the main
circuit is broken. On, the ON light on the panel is off, the OFF
light is on, and the limited protection electric furnace).
3) With 485 communication interface (standard when purchasing
software)
4) It has the function of power-off protection, that is, when the
furnace is powered on after the power is cut off, the program does
not rise from the starting temperature, but rises from the
temperature when the power is turned off.
5) The meter has the function of temperature self-tuning.
Function and performance index
| Maximum power | 2.5KW | Standard configuration |
| Chamber size | 200X150X150mm(DXWXH) |
High temperature gloves: 1 pair
Clamps: 1
Alumina tile: 1 block
|
| Supply voltage | 220V |
| Phase | single phase |
| Heating element | resistance wire |
| Number of heating surface | 3 surface heating |
| Control mode | 30 sections of program temperature control |
| Chamber Material | Alumina polycrystalline fiber |
| Control precision | +/- 1 ℃ |
| Maximum temperature | 1200 ℃ |
| Rated temperature | 1100 ℃ |
| Maximum heating rate | ≤ 30℃/Min |
| Recommended rate of temperature rise | ≤ 15℃/Min |
| Thermocouple Type | K type |
| Silicon controlled | SEMIKRON 106/16E |
| Surface temperature | ≤55℃ |
Company Profile
BOTO Testing equipment Technology Co., Ltd is a high technology
supported production-oriented enterprise who specializes in
developing, manufacturing, marketing all kinds of environmental
equipment. Our company has advanced technology, experienced
technical management personnel and efficient professional service
staffs, fine quality management and perfect after-sales service
system.
Our company mainly produce simulated environmental tester, plastic
and rubber tester etc. on all kinds of materials testing
industries. The production base is located in the country’s
manufacturing center Dongguan, Guangdong province, China. In order
to service our customers better in terms of reducing costs and
early delivery, in 2005 we had set up an office in Kunshan, Jiangsu
province for Eastern China marketing and servicing.
BOTO deals with customers from more than 150 countries and regions.
Meanwhile, we are committed to cooperate with different dealers in
different countries and regions in order to offer better service.
Our mission is to help every customers establish testing labs to
ensure the quality of their products.
Our company will continue to develop, innovate and keep faith. We
combine with the international testing standards and the specific
demands of customers that may establish a new banner in Chinese
testing industry.
Packing & Delivery
- PP film first
2. Vacuum package
3. PP film again
4. 10mm thickness PU foam to avoid collision
5. Strong wooden case
6. Standard BOTO MACHINE MARK
FAQ
Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size,
temperature range, humidity range, power supply, product, etc.),
leave us an inquiry or email and we will response promptly!
Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .
Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for
cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is
available for us.
Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during
warranty period, exclude consumables and man-made damages), life-time technical service
