Full Automatic Electric Control Concrete Cube Compression Testing
Machine
1. Product description:
* Structure: mainly composed by main unit, oil source and measuring control
system.
* Space adjusting way: Electric ball screw adjusting to realize the compression space
adjusting
* Measuring control system: The machine adopts hydraulic loading, the electronic testing load. With digital display load, loading rate, keeping maximum load, overload protection and outage
data keeping and other.
* Safety protection device: When the test foce exceed the 3% of the maximum test force ,overload protection, the oil pump motor stop.
2. Main Specifications:
| Model | BT-1000D | BT-2000D | BT-3000D |
| Max test force | 1000kN | 2000kN | 3000kN |
| Test space adjusting way | Electric ball screw adjusting |
| Control way | Manual control loading process |
| Accuracy class | 1 class |
| Test force range | 4%~100%F·S |
| Test value accuracy | Better than ±1% |
| Oil cylinder stroke | 50mm |
Max distance between upper and lower plate | 320mm | 340 mm |
| Max distance between two columns | 280mm |
| Upper and lower pressure plate | 250×250mm | 270*270mm |
| Main unit dimension | 1000×500×1450mm |
| Power supply | 2.0Kw/AC380V |
| Weight | 1000Kg | 1200kg |

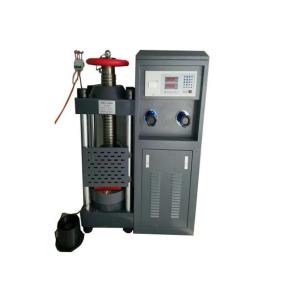

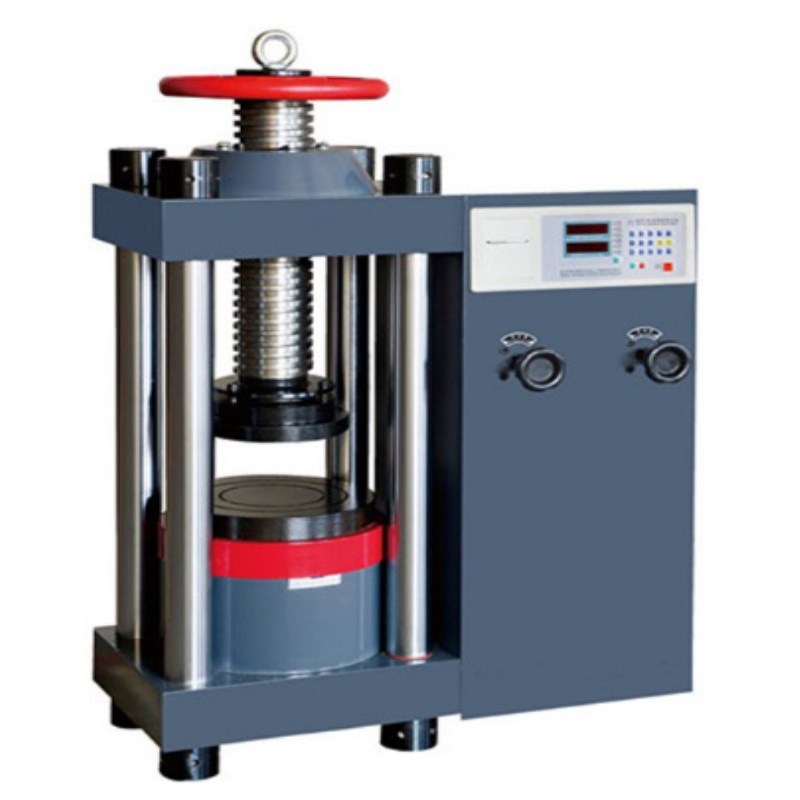

3. Detailed Image:
4. Application:
Concrete pressure testing machine is mainly used for testing the
compressive strength, folding resistance ,
maximum pressure of ceramics, cement, cement products, glue sand,
new building materials, refractory
materials, engineering materials, stone materials, rubber bearings
and other building materials.It is necessary
equipment for the laboratory of roads, railways, Bridges,
buildings, building materials and colleges and
universities etc.The concrete pressure testing machine is mainly used for testing
the compressive strength of
concrete, ceramic products, ore and other building materials.It is
necessary equipment for the laboratory of
roads, railways, Bridges, buildings, building materials and
colleges and universities etc.
5. Packaging & Shipping:
1. Packing Method: Horizontal Packing to saving moreipping cost.
2. Packing Materials: Plywood Case metting export long transport
requirement.
3. Shiping Time: Shipped within 15-20 days after payment.
4. Shipping Way: Shipped by sea or air is available.
6.FAQ:
Q: Are your company a trading one or a factory ?
A: We have our own factory and we have also register a trading
company for more options (in order to make the business more
simple) for more than 18 years focusing on test instruments field
and 15 years exporting experience.
Q: How to choose the most suitable products?
A: Our professional team will give you the best suggestion as long
as you tell us what kind of test you need to do and the required
specification.
Q: What's the delivery term?
A: At most of time, we have stock in the factory. If there is no
stock, normally, the delivery time is 15-20 working days after
deposit receipt. If you are in urgent need, we can consider making
special arrangement for you.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but
also customized machines according to your request. Don't hesitate
to tell us your requirement, we will do our best to meet your
needs.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to
visit our factory, we will help to arrange hotel and pick up you
from airport.
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period,
we can offer technique support and part parts change, if it's
necessary, our engineers may go to your place for better service.
Q: How to install and use the product?
A:About the machine you grt from us, we will send you an operation
video to teach you how to install and use the product with English
speaking. However, if you need us to teach you face to face, please
let us know in advance.
