SLFN 50Nm 0-10000rpm 0.5%FS economical torque flange for gearbox
Torque sensors
The SLFN flange sensor is ideal for test bench applications such as
engine, dynamometer and electric motor test bench applications,
wheel load simulation test bench applications, gearbox and pump
test bench applications.
Product features

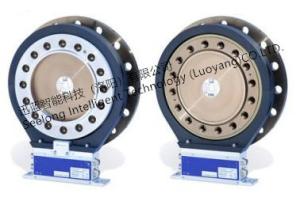

The torque sensor is designed with two flanges. Both ends of the
flanges can be installed between the shaft or flanges for torque
measurement purposes.The torsion sensor FTF is based on the
principle of resistance strain type. The resistance strain gauge is
installed on the specially processed elastomer, and then the
mechanical torque signal is transformed into an analog voltage
signal, which is proportional to the torque value within the error
range.Flange structure torque sensor FTF 100 N m, 200 N m, 300 N m,
500 N m, 700 N m, 1000 N m range is optional, nonlinear error is
not more than 0.2% of the full range;The rotation axis can pass
through a through hole located in the center of the sensor, so the
torque sensor can also be used for rotary torque measurement.Common
applications are torque calibration of torque wrench, fatigue
testing, motor torque measurement, fastening torque measurement,
actuator torque measurement, torque test bench, university torque
experiment, etc.In addition to the standard range and size,
Fosentech can also customize the torque sensor according to
customer requirements.
Product application
- Powertrain testing: engine, engine diagnostics, cold engine,
transmission driveshaft and rear axle differential
- Dynamometer
- Brakes and wheel hub
- Drive wheels
- Continuous track, heavy equipment
- Oil and water pump testing
- Jet engine / turbine testing
- Wind power gearbox and torsion blade testing / propeller testing
- Turn up / turn down gear box testing
- Industrial motor / generator testing
- Auxiliary component efficiency testing
Technical parameter
| Measuring range | 0±50N.m ±100N.m ±200N.m ±500N.m ±1000N.m ±2000N.m ±5000N.m ±1 万 N.m |
| Output signal | 5-15KHZ 0-10V 4-20mA | Overload capacity | 120% |
| Accuracy | 0.5% 0.2% | Power supply | 24VDC |
| Optimum operating Speed | 0-15000 rpm
| Response frequency
| 500μs |
| Insulation resistance | ＞200MΩ | Zero drift
| ＜0.5% |
| Repetitive | ＜0.1% | Linear | ＜0.1% |
| Lag | ＜0.1% | Environment temperature | -40-60℃ |
| Relative humidity | ＜90%RH | Temperature range | -10-70℃ |
| Amplitude of transmitter | 10V | Storage temperature range | -25-80℃ |
| Transducer power consumption | ≈4W | Sensor current consumption | 100MA |
Sensor shell
| Strong anodized aluminum | The response time of the strain gauge dynamic strain wave | 3.2X10-6s |
Layout
FAQ
Q:What’s the minimum order quantity for our cooperation?
A: We support small trail order of 1 pcs for stock products.
Q: How can I learn more about the products?
A: Please leave your email and we will send you your electronic
sample book.
Q: What’s your payment term?
A: Normally 30% T/T deposit, pay in full before shipment.
Q:What’s the lead time for my orders?
A: Dynamometers production cycle is 6-8 weeks, sensors prodction
cycle is 2-3 weeks, other products please contact with us.
Q: How do we get the overall solution of the test bench?
A: Leave us your email, our technical staff will communicate with
you about the detailed plan.
Q:Can I come to visit your factory?
A: Sure, you are always welcome to have a visit.
