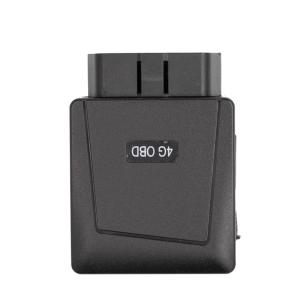

    10m 36V LTE Hidden Diagnostic OBD GPS Tracker / Gps Tracker Obd

    Ask Lasest Price
    Brand Name : iStartek
    Model Number : VT005 OBD GPS Tracker
    Supply Ability : 900000 Piece/Pieces per Month
    Price : $1.00-$45.00/PC
    Certification : CE FCC ROHS NBTC
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
    Delivery Time : 1-7 days
    • Product Details
    • Company Profile

    10m 36V LTE Hidden Diagnostic OBD GPS Tracker / Gps Tracker Obd

    Navigation LTE hidden diagnostic track car tracking device gps tracker obd

    Product Features

    Positioning & Tracking The terminal detects the car ignition ACC ON, starts continuous positioning, and uploads the position data every 15s.
    When ACC OFF is detected and the position data is uploaded every 5 minutes (the last ACC ON GPS positioning data is retained). Sleep &wake-up Model When ACC OFF, the equipment can be configured to sleep (GSM standby disconnected network connection), wake up report position regularly.
    LBS/GPS Positioning The device uses GPS positioning after power-on by default. If the gps positioning is not successful, a group of base station data will be reported.
    Read VIN Within 30 seconds after ACC ON, the device will actively read the vehicle identification number of the vehicle.
    Read Diagnostic dataAfter the vehicle is started, the vehicle engine speed, vehicle speed, battery voltage, throttle percentage, engine load, coolant temperature, intake air flow, intake air temperature, ignition advance angle, instantaneous fuel consumption, Average fuel consumption, current mileage, current fuel consumption, cumulative fuel consumption fault code, real-time data flow
    Low power protection detects that the vehicle voltage is too low, it will automatically enter the network, low power mode, default 11v
    SMS settingYou can set the IP (or domain name), port number, APN, local number, working mode, etc.
    Power cut alarm When the external power supply is cut off, the power cut alarm will be reported.
    Low power alarm When the vehicle power supply is detected to be low, an alarm will be reported. The default is 11V.
    Vibration alarm ACC OFF status, when the vehicle vibration is detected, the vibration alarm will be reported.
    Collision alarm When the vehicle have a crash
    Speed alarm When the vehicle speeding,default 120km/h
    Driving behavior monitoring Statistical travel acceleration, rapid deceleration

    Parameter

    Size58mm*45m*20mm (without plug)
    Working VotageDC 9V~36V
    Working Current35mA(ACC ON)
    Standby Current2.5m(ACC OFF)
    Backup Battery50mA polymer lithium battery
    Positioning methodGPS/AGPS/LBS
    Positioning accuracy10m
    Communication NetworkTDD/FDD/WCDMA/TDSCDMA/GSM
    Working Temp range-25~+75℃
    Storage Temp range-40~+85℃




    Structure and
    interface


    PINDefine
    4GND
    5GND
    6CAN H
    7K
    8Reserved
    14CAN L
    15L
    16VCC

    Application scenarios

    • Private car owner
    • Fleet management
    • Financial loan
    • Inventory management

    Product Pictures

    About Us

    Production Flow

    Free GPS Tracking System

    We provide a free GPS Tracking System for one year, simple and easy for management and tracking!

    • Web-based tracking system

    • Android APP

    • IOS APP

    FeaturesDescriptions
    Time Zone & Local LanguageMore than 10 languages and timezone settings
    Multiple Account SupportAllow you to set up an account for company user to management many vehicles
    Group ManagementThe user can manage the vehicle by setup difference groups
    Reporting and ExportThe overview report, Speeding report, Mileage Report, Stop Report
    Real-Time TrackingTrack the vehicle by real-time
    Location HistoryReplay the location history
    SOS AlarmSOS Alert
    Communication Failure MonitoringMonitor the vehicle when it is not reporting
    Over Speed MonitoringMonitor the vehicle when it is over a speed
    Online Vehicle Engine ControlTurn on or turn off the engine
    Geo-fence NotificationSet up a zone to monitor the vehicle to enter or exit this zone.
    LandmarkMark the new point in the map by yourself
