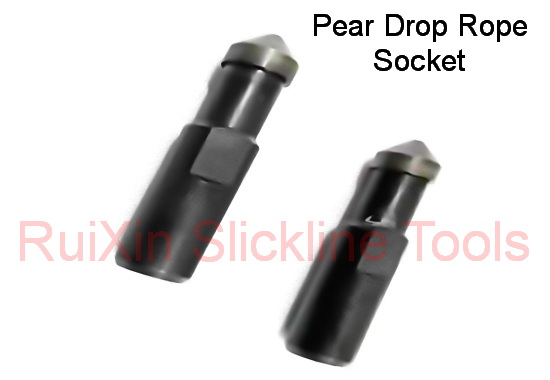

HDQRJ Pear Drop Rope Socket Wireline Tool String Low Maintenance
Wireline Pear Drop Rope Socket Wireline Tool String
Ⅰ. Applications
Wireline Pear Drop Rope Socket are used as a method of connecting the Slickline to the tool string,
from wire sizes from 0.108”up to 0.160”
Ⅱ. Features
Assembly consists of a body with external fishing neck, sleeve and
brass wedge (pear drop)
The pear drop is grooved to accommodate the wire and comes complete
with a securing grub screw
The more pull applied on the Slickline, the more the pear drop
pulls into the sleeve giving a
tighter grip on the Slickline
Ⅲ. Benefits
1. Pear drop sockets are ordered to suit the wire size being
deployed
2. Simple, low maintenance design
3. Pear Drop Rope Sockets are used to attach wireline to the
toolstring and are predominately used
with wireline sizes from 0.092” to 0.160”* dependant on size.
The Wireline Pear Drop Rope Socket assembly consists of a body with an external fishing neck, sleeve
and a brass wedge (“pear drop”) which is grooved to accommodate the
wire and comes complete with a securing grub screw.
◆About Baoji RuiXin Slickline Tools
Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It
is an IS0: 9001-2015 and API Q1 system certified technology
research and development organization specializing in the design
and manufacture of steel wire, cable and coiled tubing tools. With
strong new product research and development capabilities, it has
obtained 12 national utility model patent certificates and 1
invention patent certificate. Undertook two prefecture-level and
provincial-level scientific research projects. Our products include
wireline wireline wellhead blowout prevention equipment, wireline
downhole tools and coiled tubing downhole tools. At present, we
have provided professional equipment and technical support to more
than 50 oilfield service companies in various regions at home and
abroad.
◆Strict quality control system
Steel wire working tools are certified by API, and all
manufacturing are strictly in accordance with API system, including
quality control management, environmental management and
occupational health and safety management. For each wire working
tool and each part, we have achieved traceability from raw
materials, production process to product shipment.
◆Hard work, after-sales service
On-site technical guidance exchanges with each other. Our sales and
technical personnel communicated well with front-line engineers and
technical experts on the job site, and solved technical problems
such as material selection, sealing structure optimization, and
accident handling in complex environments. And carried out many
technical exchanges and friendly cooperation. We have done a good
job of product after-sales service for customers, and we provide
customers with more satisfactory services. We would like to thank
more and more customers for their support and trust. In the future,
we will do better.
