    90 Degrees Connection Tunnel Ventilation Fan Mini Inline Duct Fan

    Ask Lasest Price
    Brand Name : NANYOO / OME / ODM
    Model Number : DPT10-11
    Certification : CE / CB / CCC
    Price : Negotiated
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 25000 units per month
    Delivery Time : 30-35 work days
    • Product Details
    • Company Profile

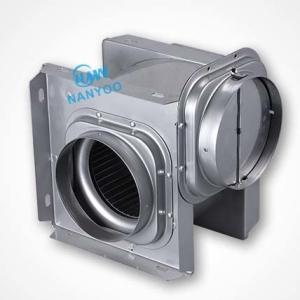

    90 Degrees Connection Tunnel Ventilation Fan Mini Inline Duct Fan

    INLINE MINI DUCT FAN - 90° CONNECTION / MINI TUNNEL VENTILATING FAN SCIENTIFIC DESIGN AND LOW NOISE


    FEATURES

    Scientific design and low noise .

    Intake and outlet in the same line , suitable for different occasions .

    Excellent motor, energy saving , silence running stable quality & long life .


    Voltage / Frequency : 220 - 240V / 50Hz , or 110V / 60Hz, 110V / 50Hz , 220V / 60Hz are all available

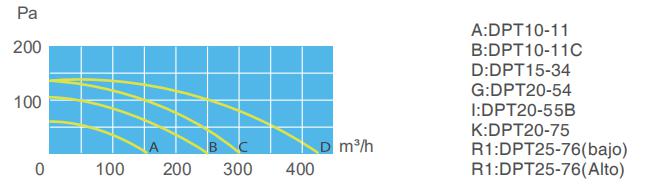

    ModelDuct DiameterPowerAir VolumeStatic PressureNoiseSpeed VelocidadNet
    Weight
    Gross
    Weight
    Usable AreaCarton
    Size
    (W)(m³/h)/CFM(Pa)(dB)rpm(KG)(KG)()(mm)
    DPT10-11Φ10021150/88604312802.12.46-10238x200x245
    DPT10-11CΦ10052250/1471104519502.12.410-15238x200x245
    DPT15-34Φ15040300/176135429105.56.010-20330×275×350
    Φ15052500/2651354911405.56.020-25
    DPT20-54Φ20055600/353185488008.69.428-33395×330×402
    Φ20070750/4411904810008.69.433-38
    DPT20-55BΦ200127800/4712005311008.69.438-42395×330×402
    Φ2001351000/5882105412008.69.442-48
    DPT20-75Φ2002851200/70625055110012.914.048-58435×420×390
    Φ2003001500/88228058128012.914.055-65
    DPT25-76Φ2503001800/10593405987817.719.065-75533×513×420
    Φ2503802100/123538062100817.719.080-90

    Authentic materials

    The whole machine super thick with all metal materials and durable (not plastic , including the impeller )

    Housing with powder coated and antirust treatment and durable


    Precise manufacturing

    It shows fine workmanship , doesn’t air leakge , ensure the air pressure and air volume

    (Own patent / check valves prevent backflow of air)

    Air duct precision and low noise


    Product Size Description

    ModelABCDEFGHKM
    DPT10-1122118013620418513580100103121
    DPT10-11C22118013620418513580100103121
    DPT15-34294251184289234181118150142160
    DPT20-54357300232358290235164200188160
    DPT20-55B357300232358290235164200188160
    DPT20-75390335240390335240195200216200
    DPT25-76464387280440355285190250200260
