EPDM Rubber Compound Pelletizing Machine / EPDM Rubber Pellet
Production Line For Sport Runway
1.Application:

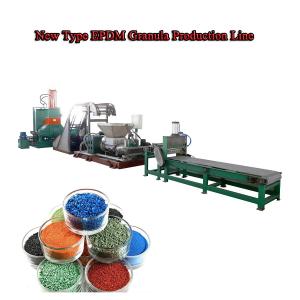

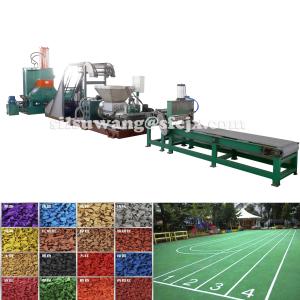

This production line is used to produce Sports-Path-Used EPDM
pellets, it consists of mixer, extruder, vulcanizer, cutter,
crusher, and screener, to get the final qualified rubber
crumb/pellets. This line features easy and reliable operation, high
productivity.
To learn more about this Sports-Runway-Used EPDM rubber pellet
production line, please contact us.

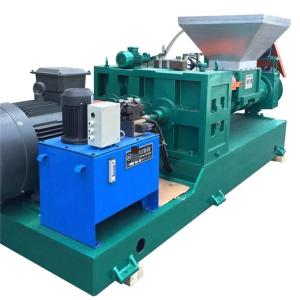

2. Force Feeding Rubber Extruder Structural Features
2.1 Compared to traditional technology, through replace the
function of rubber mixing mill during rubber compound mixing, save
labors and greatly decreased production cost.
2.2 By using double strainer head, hydraulic push-pull to replace
the filter, rapid operation, no rubber leakage, saving time and
energy.
2.3 The screw rotating speed is adjustable which can match with the
front and rear machines, improving resource utilization, safety and
energy conservation.
2.4 Specialize designed hard tooth gear reducer adopted, low noise
and long service life.
2.5 Barrel, screw made by qualified alloy steel 38CrMoAlA, through
quenching and nitriding, durable wear.
2.6 Can equip auto cutting rubber device to decrease the labor
intensity.
| Model | XJL-150 | XJL-200 |
| Screw Diameter | 150mm | 200mm |
| Screw L:D | 6.3:1 | 6:1 |
| Barrel Throat Length | 500mm | 600mm |
| Max. Screw Rotating Speed | 60r/min | 50r/min |
| Main Motor Power | 45KW | 75KW |
| Feeding Motor Power | 5.5KW | 7.5KW |
| Materials Cutting Power | 1.5kw | 1.5kw |
| Hydraulic Motor Power | 3.7kw | 3.7kw |
| Capacity | 500-800Kg/h | 900-1500 Kg/h |
| Steam Pressure | 0.2--0.4MPa | 0.2--0.4MPa |
| Cooling Water Pressure | 0.2-0.4MPa | 0.2-0.4MPa |
| Overall Dimension (L×W×H)(mm) | 3500×1650×1520 | 3700×1850×1750 |
Our Services:
1. We not only provide you machines but also offer the professional
technical guidance and market evaluate.
2. We will provide all the machines for the complete production
according to customer's requirements.
3. We will provide complete service for factory layout and other
information to help customer to build the factory.
4. We will provide good service for machine installation and
training, until the customers can run the machines and make stably
production.
5. Except one year quality guarantee, we will provide after-sell
service for all the life.
6. For long-term cooperation, we always provide good quality, good
price and good service to customer.
