25878/25821 Single row tapered roller bearing 25878-25821 34.93*73.03*24.61mm large axial load capacity

    Buy cheap 25878/25821 Single row tapered roller bearing 25878-25821 34.93*73.03*24.61mm large axial load capacity from wholesalers

    Buy cheap 25878/25821 Single row tapered roller bearing 25878-25821 34.93*73.03*24.61mm large axial load capacity from wholesalers
    • Buy cheap 25878/25821 Single row tapered roller bearing 25878-25821 34.93*73.03*24.61mm large axial load capacity from wholesalers
    • Buy cheap 25878/25821 Single row tapered roller bearing 25878-25821 34.93*73.03*24.61mm large axial load capacity from wholesalers

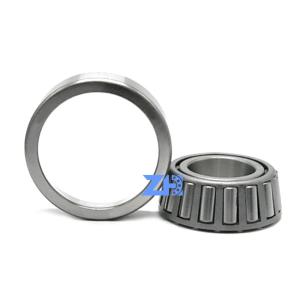

    25878/25821 Single row tapered roller bearing 25878-25821 34.93*73.03*24.61mm large axial load capacity

    Ask Lasest Price
    Model Number : 25878/25821
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 1000 pieces/month
    Delivery Time : 2-5 days
    Brand Name : ZH
    • Product Details
    • Company Profile

    25878/25821 Single row tapered roller bearing 25878-25821 34.93*73.03*24.61mm large axial load capacity

    25878/25821 Single row tapered roller bearing 25878-25821 34.93*73.03*24.61mm large axial load capacity


    Product Description

    Product name25878/25821Number Of Rowsingle column
    BrandZHQualityGuranteed
    MOQ1 pcstypeTaper Roller Bearing
    sampleavailableMaterialCHROME STEEL
    place of originChinaPackingbags,carcon box,wooden case or as requested
    shipping time3-7days after receiving the paymentPaymentT/T Paypal Western Union Trade assurance

    SF3240R25/26SF4019PX1SF4852PX1
    HS05154R25/26BA200-6A(SF4021)BA245-2
    BA135-6(135BA170)SF3240SF3227PX1/SF3215245BA35
    BD155-6BA195-3165BA210/AC3321BA246-1SA
    SF3235
    /SF3240
    SF4852/SF4815BD165-6A(3321)BA246-2SA/SF4903
    SF3235SF4831/SF4826BA160-432348SF4860PX1

    Dimensions

    d - Bore

    1 3/8 in34.925 mm

    D - Cup Outer Diameter

    2.8750 in73.025 mm

    B - Cone Width

    0.9688 in24.608 mm

    C - Cup Width

    0.7500 in19.050 mm

    T - Bearing Width

    0.9375 in23.813 mm

    Abutment and Fillet Dimensions

    R - Cone Backface "To Clear" Radius10.14 in3.560 mm
    r - Cup Backface "To Clear" Radius20.03 in0.76 mm

    da - Cone Frontface Backing Diameter

    1.59 in40.5 mm

    db - Cone Backface Backing Diameter

    1.85 in47 mm

    Da - Cup Frontface Backing Diameter

    2.72 in68.10 mm

    Db - Cup Backface Backing Diameter

    2.56 in65.02 mm

    Ab - Cage-Cone Frontface Clearance

    0.09 in2.3 mm

    Aa - Cage-Cone Backface Clearance

    0.02 in0.5 mm
    a - Effective Center Location3-0.32 in-8.1 mm

    Basic Load Ratings

    C90 - Dynamic Radial Rating (90 million revolutions)44960 lbf22100 N
    C1 - Dynamic Radial Rating (1 million revolutions)519100 lbf85100 N

    C0 - Static Radial Rating

    21900 lbf97400 N
    Ca90 - Dynamic Thrust Rating (90 million revolutions)62460 lbf11000 N

    Factors

    K - Factor72.01
    e - ISO Factor80.29
    Y - ISO Factor92.07

    G1 - Heat Generation Factor (Roller-Raceway)

    26.4

    G2 - Heat Generation Factor (Rib-Roller End)

    10.9
    Cg - Geometry Factor100.0695
