    SLC Screw Hydraulic Oil Chiller Magnetic Centrifugal Water Cooled Chillers

    Ask Lasest Price
    Brand Name : Shenglin
    Model Number : SLC Series
    Certification : CE
    Price : 10000~100000 USD/unit
    Payment Terms : Western Union, T/T
    Supply Ability : 100 units per month
    Delivery Time : 35~40 days
    • Product Details
    • Company Profile

    SLC Screw Hydraulic Oil Chiller Magnetic Centrifugal Water Cooled Chillers

    Oil Free Magnetic Centrifugal Water Cooled Chillers


    Products Features

    1 Using R134a refrigerant which is a HFC working medium, and it is an internationally recognized environment-friendly refrigerant.
    2 Using Hanbell two-stage magnetic centrifugal compressor with excellence performance in its industrial
    3 Using high efficiency permanent magnet synchronous motor whose efficiency reaches 97%
    4 Using high efficiency airborne liquid cooled inverter whose harmonic distortion rate is less than 5%.
    5 Using high efficiency falling film (spray type) evaporator, high efficiency shell-tube condenser.
    6 Using compound orifice plate as flow control device so that the refrigerant flow rate can be adjusted in time without delay under variable load and conditions
    7 System oil-free design, high efficiency and energy saving, without mechanical friction, and the running noise is less than 74dB (A).
    8 Strong anti electromagnetic interference ability can meet the requirements of different fields.
    9 Using SIEMENS intelligent control system which is safe, fast start up and easy to operate
    The unit can configure the cloud remote monitoring system which can master the operation information of the unit at any time
    Model coding of centrifugal water cooled chillers
    SLCMA400LVT

    Technical data
    Model SLCM-A400A450A500
    Refrigerating capacitykW140615821758
    Input powerkW210240272
    Full load efficiency COPkW/kW6.706.596.46
     kW/RT0.530.530.54
    IPLVkW/kW11.5811.5811.58
    Condenser
    Water flowm3/h302340378
    Water pressure dropkPa785060
    Inlet and outlet water pipe jointDN200250250
    Evaporator
    Water flowm3/h242272302
    Water pressure dropkPa528290
    Inlet and outlet water pipe jointDN200200200
    Outline Dimension
    A(Length)mm400045704570
    B(Width)mm225024002400
    C(Height)mm260026002600
    Installation dimension
    Dmm294434483448
    Emm170018001800
    Transport weightkg600070007500
    Operation weightkg700080008500
    Refrigerant fillingkg360400450
    Model SLCM-B800B900B1000
    Refrigerating capacitykW281331643516
    Input powerkW420480544
    Full load efficiency COPkW/kW6.706.596.46
     kW/RT0.530.530.54
    IPLVkW/kW11.5811.5811.58
    Condenser
    Water flowm3/h605680756
    Water pressure dropkPa658085
    Inlet and outlet water pipe jointDN300300300
    Evaporator
    Water flowm3/h484544605
    Water pressure dropkPa506570
    Inlet and outlet water pipe jointDN300300300
    Outline Dimension
    A(Length)mm550055005500
    B(Width)mm255025502550
    C(Height)mm265026502650
    Installation dimension
    Dmm434043404340
    Emm205020502050
    Transport weightkg115001250013000
    Operation weightkg130001400014500
    Refrigerant fillingkg700800900
    1. Operation condition(GB/T 18430.1-2007)
    Evaporation:Water outlet temperature 7℃, Water flow:0.172 m³/(h*kw)
    Condenser:Water inlet temperature 30℃, Water flow:0.215 m³/(h*kw)
    IPLV data is based on AHRI standard
    2. Both condenser and evaporator are connected by flange
    3. Refrigerant:R134a
    4. Voltage:3φ-380~460V-50Hz
    5. Package standard lateral water pressure-bearing1.0MPa
    6. Unit conversion:1RT=3.517kW
    Application:
    Mainly used in air conditioning, refrigeration, industrial cooling, constant temperature.

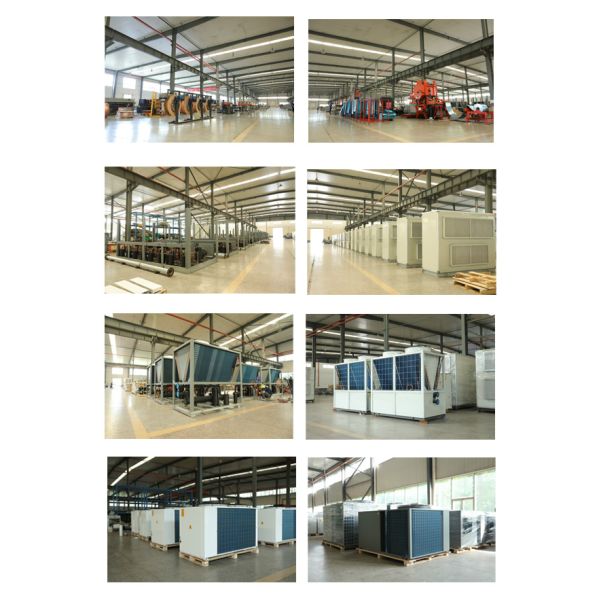

    Our workshop:
