    Digital Rip Length 43mm 100W Fabric Tearing Strength Tester

    Ask Lasest Price
    Brand Name : GESTER
    Model Number : GT-C11B
    Certification : CE, ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets/month
    Delivery Time : 10-30 days
    • Product Details
    • Company Profile

    Digital Rip Length 43mm 100W Fabric Tearing Strength Tester

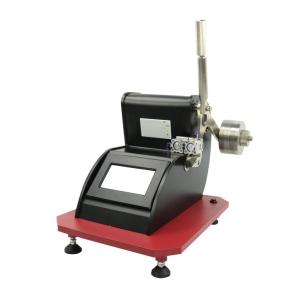

    Digital Fabric Elmendorf Tearing Strength Tester GT-C11B


    Product Introduction of elmendorf tester

    Application:

    This Digital Tearing Tester is designed for Elmendorf method tearing resistance test of textile, non-woven fabrics, paper, paper board, thin film, ventilation tape, metal sheet materials and etc.

    Standards:


    Textile Tear Test: GB/T3917.1, ASTM D1424, DIN 53862, ISO13937-1, ISO4674-2, ISO9290, M&S P29, NF G07-149
    Paper Tear Test: GB/T455, APPITA P400, ASTM D689, BS 4468, CSA D9,
    DIN 53128, EN 21974,ISO 1974, JIS P8116, PAPTAC D9, SCAN P11,
    SNV 198482, TAPPI T414, UNI 6444
    Plastic Tear Test: GB/T11999, ASTM D1922, ISO6383-2, JIS K7128-2
    Non-woven Tear Test: ASTMD5734



    Feature of elmendorf tester

    • Advanced calculation methods make sure precision test & good repetition.
    • Microcomputer system, can do auto test, calculate, analysis result, print test report.
    • Humanity operation system, Chinese and English operation interface.
    • Can look up all the datum & statistical result in mainframe freely.
    • Tear test unit can convention between N, gf, cN and ibs, suitable for differents standards.
    • Pneumatic sample grips and pendulum bob released to make sure equal clamping force.

    Key Specifications of elmendorf tester

    Range of tearing force

    1600CN, 3200CN, 4800CN, 6400CN,

    8000CN, 9600CN,11200CN, 12800CN

    Accuracy≤±0.2%F·S
    Incision length20+/-0.2mm
    Rip length43mm
    Sample clamping methodsPneumatic clamp
    Power supplyAC 220V 50/60HZ 100W
    Dimensions490 x 430 x 680mm (L x W x H)
    Weight50kg
