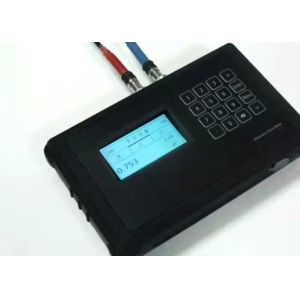

Transit Time LCD 10KHz DN1200 Ultrasonic Flow Meter

Portable Ultrasonic Flow & Engergy Meter
I. Introduction

ML-6100P is a full function portable transit-time ultrasonic flow meter. No matter you want to quickly verify the flow reading of another meter or to data log flow system values over an extended time period, the MELAN’s 6100P is the suitable tool.

The 6100P portable meter has the clamp on transducers no tapping or cutting is required, just clamp outside of the pipe. The meter can be easily moved and installed in different pipe and convenient to carry site to site.Its portability makes it an excellent choice for measuring flows throughout the plumbing infrastructure to verify sensor, pump and valve performance.

II. Specification

Performance
Velocity Range	±0.09ft/s ~ ±39ft/s (±0.03m/s ~ ±12m/s)
Accuracy	±1% of measured value
Repeatability	0.2% of measured value
Linearity	±1%
Pipe Size	DN25~DN1200(A pair of sensors)
Function
Output	Analog output: 4~20mA, max load 750Ω.
Output	Pulse output: 0~10KHz
Communication	RS485 Modbus
Power Supply	Rechargeable Lithium Battery Power,3000mAh
Display	240*128 back lit LCD
Temperature	Transmitter: -14℉~140℉(-20℃~60℃)
	Transducer:-40℉~176℉(-40℃~80℃,D1)
	Transducer:-40℉~266℉(-40℃~130℃,D1U)
Humidity	Up to 99% RH,non-condensing
Physical
Transmitter	NEMA13, IP54
Transducer	Encapsulated design,IP68
	Double-shielded transducer cable
	Standard/maximum cable length:30ft/1000ft(9m/300m)

III.Accessories

1. Carrying Case*1pc.

2. Transmitter (Electronic)*1pc.

3. Transducer (Sensor) *1 pair.

4. Mounting bracket*1 set, ST or DT

5. Pipe straps *2 pairs.

6. Battery charge*1pc, Output cable*1pc and Tapeline*1

IV. Configuration

Model	Transmitter
ML-6100P	PortableType
	Velocity Range:±0.09ft/s ~ ±39ft/s (±0.03m/s ~ ±12m/s)
	Accuracy :±1% of the measure value
	Repeatability:0.2% of the measure value
	Display:240*128 back lit LCD
	Internal Lithium Power Supply: 3000mA
	Transmitter Enclosure: IP54
	Output: OCT pulse output 0-10KHz, Relay output, 4-20mA for option
	Communication: RS485
Code	Type of Trnansmitter
1	Ultrasonic Flow Meter
2	Ultrasonic Energy / BTU Meter(RTD)
Code	Transducer
D1	Clamp-on, IP68. Operating temperature:-40 ℉ ~ +176 ℉(-40℃ ~ +80 ℃)
D1U	Clamp-on, IP68. Operating temperature:-40 ℉ ~ +266℉(-40℃ ~ +130 ℃)
Code	Type of Mounting Bracket
ST	Single guide mounting type bracket
DT	Double guide mounting type bracket
Code	Transducer Cable Length
P5	Standard length 16ft (5m)
PXX	XX is the length you need for cables, Maximum length is up to 30m.
Code	Temperature Transducer
PT1000	PT1000 temperature transducer+RTD module(option)
