Remodeling 2000 Micron 2mm Switchable PDLC Film

Name: Remodeling 2000 Micron 2mm Switchable PDLC Film
Brand: UPASS
Price: 1 USD

Ask Lasest Price
Brand Name :	UPASS
Model Number :	Youguang
Certification :	ISO9001
Price :	Negotiable
Payment Terms :	TT/LC
Supply Ability :	600 Tons/Month
Delivery Time :	Negotiable

Add to Cart

Product Details
Company Profile

Remodeling 2000 Micron 2mm Switchable PDLC Film

Electrochromic Opaque To Transparent Switchable Transparent Film

Product Description:

PDLC (Polymer Dispersed Liquid Crystal) is a light modulating material comprised of droplets of liquid crystal uniformly dispersed in a transparency or translucency, flexible plastic film. When power off, coming visible light scatters through the PDLC, and the film turns translucent; When power on, coming visible light transmits the PDLC and the Film turns clear.

The polymer and the liquid crystals are encapsulated in the PDLC. Both faces of the film are covered with a transparent ITO coating. Both ITO coatings are connected to a flat electrical busbar, which is fixed on one of the edges of the film.

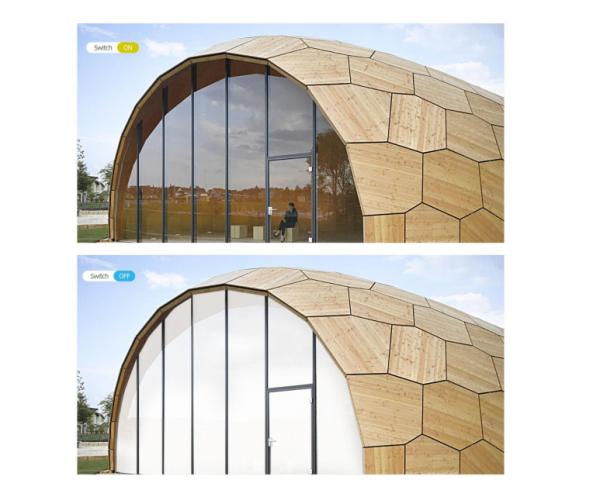

When the Film is switched off from its power supply, the liquid crystals are randomly scattered and diffuse light in all directions. In this state PDLC is translucent and prevents both sides from seeing through the Film.

By switching on, the crystals line up and re-orientate themselves, turning the Film totally transparent. Switching from non-transparent state to the transparent state is almost instantaneous and can be repeated as often as desired.

PDLC (Polymer Dispersed Liquid Crystal) Glass is a kindly laminated glass, which can change to be transparent or non-transparent instant by switching the electricity power by means applying with PDLC film.

Structure:

The picture shows the principle diagram of the STF

The swichable liquid crystal transparent film is also called an electronically controlled smart PDLC flm

lt consists of two layers of flexible transparent conductive films (ITO film and PDLC)

Type of products:

Parameters:

Item		Performance / Unit	Testing Method and Standard
Rated Voltage	ON	36/48/60(AC50HZ)	Multimeter
Power Consumption	ON	4-6w/(SQM)	Multi-parameter Electrical Measuring Instruments
Total Light Transmittance	ON	＞83%	GB/T 2410-2008GB/Spectrophotometer
Total Light Transmittance	OFF	＞67%	GB/T 2410-2008GB/Spectrophotometer
Directional Light Transmittance	ON	＞80%	GB5137.2-2002
Directional Light Transmittance	OFF	＜4%	GB5137.2-2002
Haze	ON	＜4%	GB/T 2410-2008GB/Spectrophotomete
Haze	OFF	＞96%	GB/T 2410-2008GB/Spectrophotomete
Response Time	ON	＜40(MS)	Liquid Cystal Mutl-prareter. Measuring Instrument
Response Time	OFF	＜210(MS)	Liquid Cystal Mutl-prareter. Measuring Instrument
Operating Temperature	/	-30~70℃	Constant Temperature and Humidly Testing Machine
Lifetime	ON	＞100000(H)	GB18910.5- 2008

Installation:

Controller:
