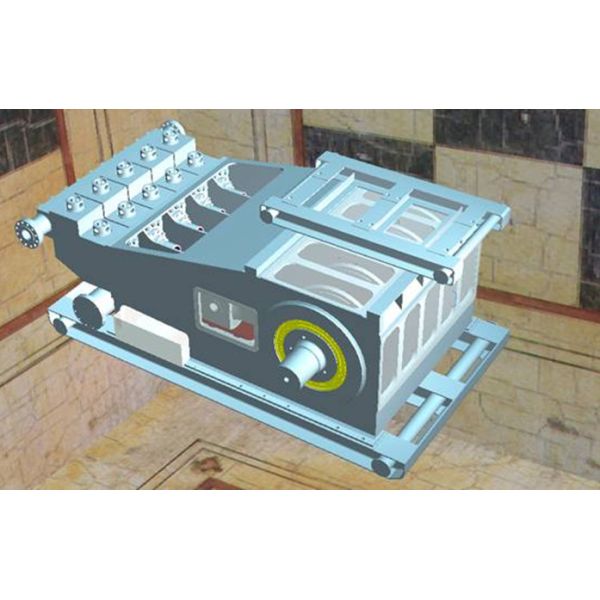

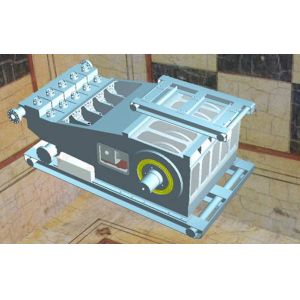

    QDP 3000 ISO& API 7k Certificate Mud Suction Pump

    Ask Lasest Price
    Brand Name : BOMCO
    Model Number : QDP-3000
    Certification : API ISO 9001:2000
    Payment Terms : L/C, T/T
    Supply Ability : 2 SET/month
    Delivery Time : 2 month
    • Product Details
    • Company Profile

    QDP 3000 ISO& API 7k Certificate Mud Suction Pump

    • QDP-3000 Drilling Mud Pumps and Pump unit with ISO& API 7k certificate for oil&gas drilling rig
    • Product Explanation: QDP-3000 five Cylinders mud pumps include power end, fluid end, spraying system, lubricating system . QDP-3000 mud pumps include AC motor, gearbox and five Cylinders pump

    Product Features:

    1. Performance features:
    High-power, Large displacement, High pressure.
    Displacement and discharge pressure evenly.
    Small size and light weight.
    2. Structural characters
    Drilling mud pump or pump unit adopts modular design, disassembly and moving easily.
    The full processing forged crankshafts have light unbalanced weight , running even, multi-point support and high strength characters.
    In order to reduces the eccentric wear of the partial cylinder liner, joint bearings are used between the crosshead and extension rod. The crosshead surface is sprayed babbit metal to improve allowable specific pressure and allowable speed.
    The new type hydraulic cylinder reduces its weight, improves suction performance and replaces the suction valve easily.
    The main pressure parts of fluid end all adopt alloy steel forgings. “No welding ,no casting” design improves their reliability.

    Product types and specifications:

    3.1 Specifications

    ModelQDP-3000
    Rated input power2237 kW(3000 hp)
    strokes300mm
    Rated stroke number117r/min
    Cylinder diameter(mm)φ130φ140φ150φ160φ170φ180
    The maximum number of stroke( r/min)166154144135127120
    The maximum discharge pressure(MPa)51.944.739.034.230.327.0
    Maximum Displacement55.0859.2763.6267.8672.0776.34
    Rated Rod Load688,338 N
    Diameter of suction pipe305 mm(12 inch)
    Discharge tube diameter130 mm (5-1/8 API 10000psi Flange)
    Single Pump Weight41,018kg
    Pump unit weight57,695 kg
