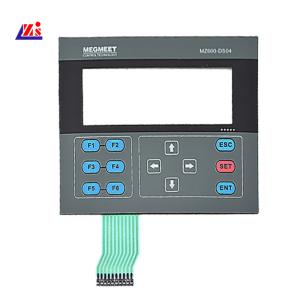

Matte finish pc pet meterial membrane switch keypad with backlight
/
ZS-10 / printing a phosphor powder on button
Specification
Overlay Materials: The most commonly used base materials are
polyester and polycarbonate.
Rear Adhesive: 3M 467MP, 3M 468MP, etc.
Standard Tolerances: +/-.010 inch.
Matching color: Pantone and RAL color matching system.
Tail, pin and circuit layout: subject to customers detailed
requests.

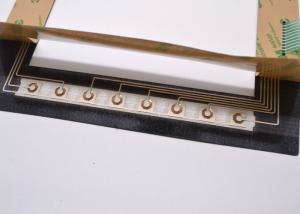

Type of Switch:
• ebossed tactile and metal dome with phorspor powder
• Tactile with stainless steel domes
• Tactile with poly domes on the circuit
Wire Resistance
| 0.5mm width,<1Ω/cm | Rated Current | 25-100mA,0-30V DC |
Insulation Resistance
| >100MΩ 250V DC | Working Voltage | <50V DC |
Non-tactile Switch
| 0.1-0.4mm | Tactile Switch | 0.4-1.0mm |
Working Life
| Working Life | Working Temperature | -40℃ ~ 70℃ |
Working Humidity
| 40℃,98%RH No influence | Substrate Voltage | 1500V DC |
Feedback Time
| 10ms | Tail Folding | R>1,18 |
Application area
Company Introduction
Over 13 Years in the Membrane Switch Industry,Founded in 2002,
Nanjing Zhongshan
Membrane Switch is a professional membrane switch manufacturer in
China. Our professional
operation can ensure you of quality products supported by
mechanical, electronic and control
automation. Based on our good abilities in technology and
production workmanship, our
products are strictly checked by our quality supervision
department. For your added
assurance, our plants are ISO 9001:2000-certified and our products
are compliant with the
RoHS Directive..
“Our 3,000sqm factory houses three production lines furnished with
advanced equipment to
manufacture up to 6 million pieces monthly. We are serving
customers in Asia, the US,
Europe, Australia and other areas worldwide.
