Automatic Broiler Breeder Farm Equipment For Complete Automatic
Poultry House
Automatic Poultry House:
| Poultry house | Specification |
| Main Steel Frame | Column | Q235, Q345 Welded H Section Steel |
| Beam | Q235, Q345 Welded H Section Steel |
| Secondary Frame | Purling | Q235 C and Z purlin |
| Knee brace | Q235 Angle Steel |
| Tie Rod | Q235 Circular Steel Pipe |
| Brace | Q235 Round Bar |
| Vertical and Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe |
| Maintenance System Purling | Roof Panel | EPS Sandwich Panel / Glass Fiber Sandwich Panel |
| Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet |
| Wall panel | Sandwich Panel / Corrugated Steel Sheet/steel wire |
| Accessories | Window | Aluminum Alloy Window / PVC Window / Sandwich Panel Window |
| Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door |
| Rain spout | PVC |
Automatic Poultry Keeping system:
| 1 Environment Control System | A variety of environment controllers are customized from Israel,it
can reach a most advanced control leave in poultry house control. |
| 2 Main Feed Line System | Silo /manpower hopper is the beginning of main feed line.There is a
feed sensor at the end of main feed line which controls motor on
and off to achieve automatic feed delivery. |
| 3 Pan Feeding Line System | There is a feed sensor at the end of each feeding line which
controls motor one and off to achieve automatic feed delivery to
each feed pan. |
| 4 Automatic Drinking Line | Supply clean water to each nipple steady, |
| chicken can drink water from 360 degree freely |
| 5 Ventilation System | Make chicken shed keep suitable temperature |
| for different stage chicken |
| 6 Cooling Pad System | The longitudinal way of cooling-fan ventilation way is the most
economical and effective way to reduce temperature of chicken house
in summer. |
| 7 Heating System | In winter or chicks,it make chicken house has a suitable
temperature. |
| 8 Fogging And Disinfection | It is effectively tools for cooling,damping,dedusting and
disinfecting the house |

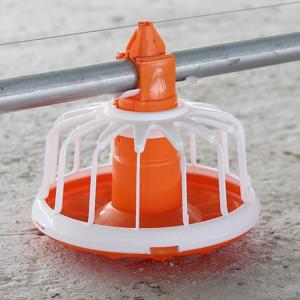

Automatic Broiler Pan Feeding System:
Automatic Broiler Feeding Equipment For Closed Poultry Chicken Farm
House Floor Ground System
1. Two Kinds of Bottom Design: Flat Bottom As Well As Wave Bottom;
2. Low Pan Edge For Broilers Easy Access The Feeds, Especially for
day age chick;
3. Larger Surface To Make Broilers Comfortable;
4. Special Grids Design for Various Broilers; Besides The Height Is
Suitable for All Ages Broilers;
5. The Deep Trough In The Pan Keeps Feed Central;
6. The Special Cone Design to Prevent Broilers From Flicking The
Feeds;
7. Offer Much More Animals Per Pan Than The Standard Pan;
8.Excellent Design avoid Wasting To Save The Cost;
9.Handy Feed Level Adjustment Ring For Broilers Breeders;
10.High Strength and Flexibility.
MATERIAL: Durable Plastic
COLOR: White, Orange or Per Customers Request.
MAIN SIZE: 14 Grids Flat Bottom, 14 Grids Wave Bottom, 5 Grids Flat
Bottom, 5 Grids Wave Bottom; with 3 Size Height: 50mm, 60mm, 72mm;
6 Levels of Width of The Feed Control Grid From 40mm to 50mm.
System Pictures:
