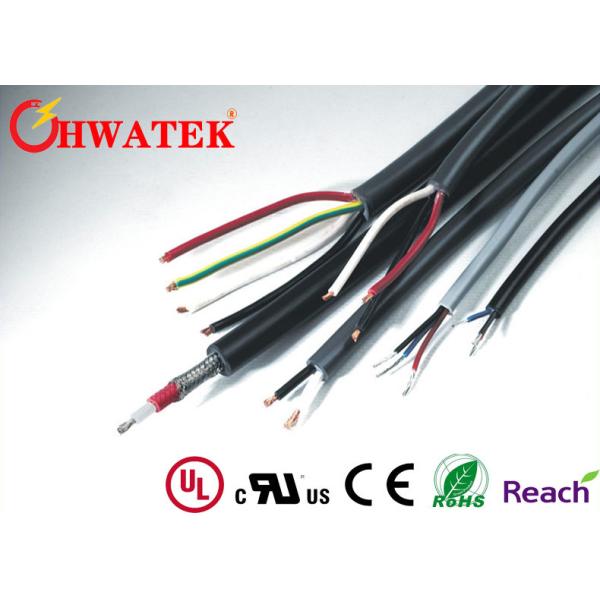

UL21307 300V, 80℃, halogen-free, low-smoke, flame-retardant elevator hoistway wiring-control signal cable

1.Product Introduction with 80℃ Multicore Flexible Cable

The wiring inside the elevator shaft with a rated voltage of 300V-the control signal cable is composed of copper conductor, insulation, filling, tape, shielding and outer sheath. The cable has the characteristics of high flexibility, halogen-free, low smoke, flame retardant, etc. At the same time, all the materials of the cable comply with the latest environmental protection standards of RoHS&Reach.

3.Application field

Mainly used for fixed installation of signal transmission cables in elevator shafts.

2.Characteristic with 80℃ Multicore Flexible Cable

4.Structure diagram with 80℃ Multicore Flexible Cable

1- conductor,2- insulation,3- filling,4- Strap,5- shield(Optional),6- Outer sheath

Printing:E258652 AWM STYLE 21307 ***AWG 80℃ 300V FT-2— c AWM I/II A/B 80℃ 300V FT2 -LF- HWATEK

5.Basic Information

Conductor : Solid or Stranded
Insulation: FRPE

Shield or Braid: optional

Jacket: FRPE

6.Implementing standards

International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,

7.Technical data

Rated voltage:300V

Rated Temperature:-40℃-80℃

Flame: FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

Voltage withstand test:AC 2.0kV/1min

8.Specifications with Multicore Flexible Cable

The above products are non-shielded standard models, and can also be customized according to customer requirements or actual usage.

9.Certificates with Multicore Flexible Cable

UL, CUL, CE

10.Packing and Shipping with Multicore Flexible Cable

• The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
• If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
• Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
• The cargo, manufacturer, packing details will be labeled on the outer packing;
• About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
• Shipping term, It depends on the value of the goods and the will of the customer.
