UL2517 300V, 105°C, oil resistant, VW-1 flame retardant, PVC insulated elevator machine room wiring-control signal cable

1.Product Introduction with UL 2517

Wiring in the elevator machine room with a rated voltage of 300V-the control signal cable is composed of copper conductors, insulation, filling, tape, shielding, and outer sheath. The cable has the characteristics of high flexibility, high temperature resistance, oil resistance, flame retardancy, etc. At the same time, all materials of the cable comply with the latest environmental protection standards of RoHS&Reach.

2.Characteristicwith UL 2517

3.Application field with UL 2517

Mainly used for fixed installation of signal transmission cables in elevator machine rooms.

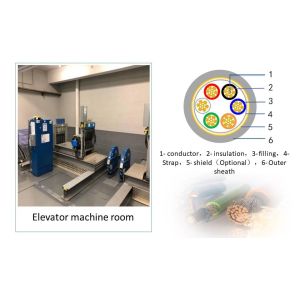

4.Structure diagram with UL 2517

1- conductor,2- insulation,3- filling,4- Strap,5- shield(Optional),6- Outer sheath

Printing:E258652 AWM STYLE 2517 ***AWG 105℃ 300V VW-1— c AWM I/II A/B 105℃ 300V FT1 -LF- HWATEK

5.Basic Information with UL 2517

Conductor : Solid or Stranded
Insulation: Special mixed PVC

Shield or Braid: optional

Jacket: Special mixed PVC

6.Implementing standards with UL 2517
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,

7.Technical data with UL 2517

Rated voltage:300V

Rated Temperature:-40℃-105℃

Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

Voltage withstand test:AC 2.0kV/1min

8.Specifications with UL 2517

The above products are non-shielded standard models, and can also be customized according to customer requirements or actual usage.

9.Certificates with UL 2517

UL, CUL, CE

10.Packing and Shipping with UL 2517

• The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
• If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
• Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
• The cargo, manufacturer, packing details will be labeled on the outer packing;
• About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
• Shipping term, It depends on the value of the goods and the will of the customer.
