Dual Column Universal Testing Machine 10KN With Extensometer For
Elongation
Introduction:
The double column tensile machine 10KN is also called the universal
testing machine. The biggest advantage is that the structure is
stable, the tensile machine is large, the test space is large, and
large deformation can be added, and various large-size sample test
tensile testers are used to statically test materials. Mechanical
testing machine for loading, tensile, compression, bending,
shearing, peeling and other mechanical performance tests. It is
suitable for various physical machines of plastic sheets, pipes,
profiles, plastic films, rubber, wires and cables, etc. Performance
testing is for material development, and is an indispensable
testing equipment for physical testing, teaching research, quality
control, etc.
Specifications of Dual Column Universal Testing Machine 10KN :
| Model | PT-1166 Universal Testing Machine 10KN With Extensometer |
| Sensor Capacity | 2,5,10,20,50,100,200,500,1000,2000kgf, any one option (20N,50N,100N,200N,500N,1000N,2000N,5000N,10000N,20000N) |
| Software | Windows professional software |
| Force Accuracy | ±0.5%(GB/T 16491-2008) |
| Force Resolution | 1/500,000 |
Measurement Range | 0.5~100%F.S |
| Deformation Display Accuracy | ±0.5% |
| Test Speed | 0.05～1000mm/min,free set |
| Test Travel | Max 1000mm,exclude fixture/grip |
| Effective Test Space | Front back no limit,left right 400mm |
| Unit Switch | A variety of measurement units including international units |
| Stop Mode | Upper and lower limit safety setting, emergency stop button,
program strength and elongation setting, test piece failure |
| Standard Configurations | Standard fixture 1 pair, software and data line 1 sets, 1 sets of
equipment power supply, operating instructions user manual, 1
product certification , 1 product warranty card |
| Purchase Configuration | Business computer , printer , various test grips |
| Size | About 76×46×160cm(W×D×H) |
| Weight | About 160kg |
| Motor | AC servo motor (Panasonic) |
| Power Supply | 1PH,AC220V,50/60Hz,10A or as specified |
Test Items of this UTM machine :
Tension, compression, bending, shearing, peeling, three-point
bending resistance, elastic modulus, elongation at break, yield
strength, puncture, bursting, adhesion, tearing.
Design Standards:
GB/T16491,GB/T1040,GB/T1041,GB/T8804.1-2,GB/T8808,GB13022
Features of dual column UTM :
1. Using Panasonic's full digital AC servo speed control system and
AC servo motor to drive the imported high-efficiency reducer and
precision ball screw pair for testing, to achieve a wide range of
test speed adjustments, and complete the stretching of metal and
non-metal materials. Compression, bending, and flexural tests can
automatically obtain the tensile strength, bending strength, yield
strength, elongation, elastic modulus and peel strength of the
material, and can automatically print: force-time,
force-displacement curve and test Results report.
2. Computer closed loop control, automatic storage of test results,
test results can be accessed at will, and simulated and reproduced
at any time.
3. Adopt brand computer and equipped with special software for
Windows electronic universal testing machine, measure the
performance parameters of materials according to national standards
or standards provided by users, perform statistics and processing
of test data, output and print various required test curves and
test reports: You can choose to display, enlarge, compare and
monitor the test process of various test curves such as
stress-strain, load-strain, load-time, load-displacement,
displacement-time, deformation-time, etc., intelligent and
convenient.

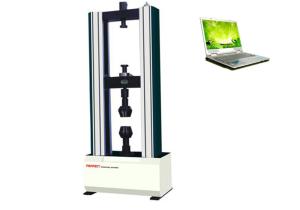

UTM Machine picture :
UTM Testing Software :
