    IEC61850 KF932 Differential Protection Relay Testing

    Ask Lasest Price
    Brand Name : kingsine
    Model Number : KF932
    Certification : CE/ISO9001
    Price : Negotiation
    Payment Terms : L/C,T/T
    Supply Ability : 100 sets/month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

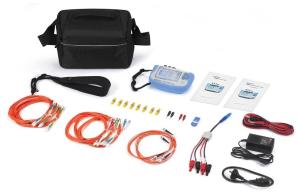

    IEC61850 KF932 Differential Protection Relay Testing

    IEC61850 KF932 Differential Protection Relay Testing


    Description Of IEC61850 Relay Test Set


    Relay protection microcomputer test device plays a key role in operating electricity power systems reliably and safely. It is the testing device used in professional field of microcomputer protection, relay protection, excitation measurement, fault recorder.


    Feature Of Intelligent Relay Tester


    KF932 IEC61850 Relay Tester is developed based on the intelligent substation related standards to analyze the SV, GOOSE,IRIG-B and IEEE1588 message, calculate the magnitude, phase and frequency of voltage and current, and real-time monitor of GOOSE virtual terminal.
    Receiving closed-loop testing of smart devices via SV, GOOSE message sending, subscription and publication of GOOSE messages;
    Phase detection function is achieved by analyzing and calculating different control blocks; Binary input and output of the hard contact can be completed on the intelligent operation box transmission delay and SOE on the accuracy of the measurement;
    SV and GOOSE exception statistics analysis and synchronization function to achieve the integration of the unit discrete, lost frame and absolute delay measurement.

    Specification Of Overcurrent Relay Test Set


    1 Power Supply

    Power Supply
    BatteryLarge capacity lithium battery
    Power AdapterInput:AC100~240V,50/60Hz,0.7A
    Output:DC15V,1.66A

    2 Power consumption

    Power consumption
    Power consumption≦6W
    Working power supplyContinuous work for more than 10 hours

    3 Communication port interface

    Optical Ethernet communication port
    Model100Base-FX (100M Full duplex optical fiber network)
    Port TypeLC
    Wavelength1310nm
    Transmission distance≧1km
    ApplicationIEC61588 Times and other network messages

    Optical serial port communication interface
    Port number2 pcs
    Port TypeST
    Wavelength62.5/125μmMultimode fiber,Wavelength850nm
    Transmission distance≧1km
    ApplicationReceive/Send IEC60044-7/8(FT3),IRIG-B Timing signal transceiver

    Advantage Of Frequency Relay Test System


    No.Analysis ItemAnalysis content
    SMV Measurement and analysisInterceptionAutomatically intercepts SV messages from 3 optical ports and 1 optical interface
    Effective valueReal-time display channel of amplitude, phase and frequency
    OscillographyReal-time display of waveform
    Sequence componentReal-time display the positive sequence V1, negative sequence V2, zero positive sequence V0 of magnitude and phase
    PowerReal-time display of ABC phase and three-phase active, reactive power, apparent power and power factor
    VectorgraphThe magnitude and phase relationship of the three-phase voltage and current are displayed in vector form
    HarmonicReal-time display 0 ~ 19 harmonics, and show the harmonic content in the form of histograms
    Message parameterReal-time display of the current message parameters, the original message and parsed message
    Abnormal
    message
    The number of abnormal message
    Discrete
    Value
    The number of messages in each discrete
    GOOSE analytic and analysisInterceptionAutomatically intercepting GOOSE messages from 3 optical ports
    Virtual terminalReal-time display of the status of the virtual terminal, support a variety of display. Automatically record the reset time of the virtual terminal.
    MessageReal-time display of the current message value and the original message value.
    Abnormal messageThe number of abnormal message

    FAQ


    Q: Can the relay protection tester show the impedance curve?

    A: Yes.

    Q: What is your technical advantages?

    A: The most light and powerful handheld digital relay tester for IEC61850 testing;Applied to digital protection relay, Measure & control device, IEC61850 Complying IEDs ,Merge Unit and substation control system testing and detection.

    Q: How long is the warranty period?

    A: 3-Years guarantee of free repair and life-long maintenance
