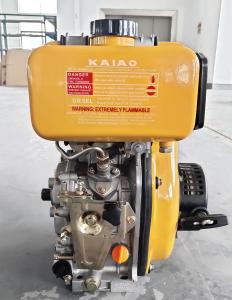

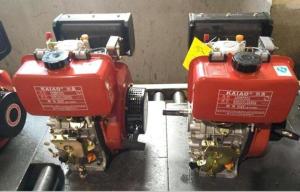

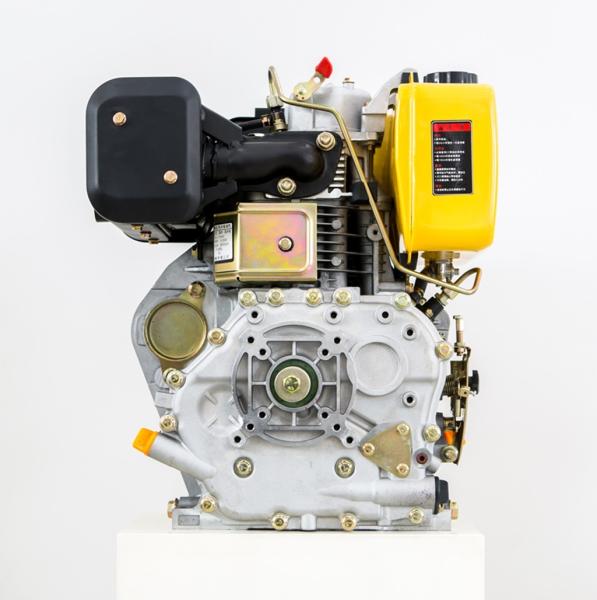

387*330*360mm 2 cylinder Air Cooled Diesel Engine with ISO9001
Air-cooled diesel engines, single cylinder diesel engine, direct
injection diesel engine. Diesel generator set, diesel water
pump,diesel generator and welder set, gasoline engine, gasoline
generator set are also our best-selling products.
1.Mature technology, simple structure, high market share,
easy-to-purchase accessories and convenient maintenance.
2.The energy consumption is relatively small, only 2L diesel per
hour. 3.Rich configuration, you can freely choose manual start or
electric start, with or without light, evaporation or condensation,
direct injection or vortex. 4. Light weight and small size,
suitable for small machines such as micro tillage machines
Compact Design, Quick & Easy Start
With stronger but lightweight alloy used for main engine parts,
extra tough crankshaft and overall compact structure, ensure
powerful and simple to install and quick & easy to start.
Application:
KAIAO air-cooled single cylinder engines could be assemble with
Agricultural machines (such as Tillers), marine boats, generators &
pump sets etc.
| Model | KA178F/Single cylinder air-cooled diesel engine |
| Rated output(HP/rpm) | 5HP/3000rpm, 5.5HP/3600rpm |
| Rated output(KW/rpm) | 3.68KW/3000rpm, 4KW/3600rpm |
| Engine type | Single-cylinder, vertical, four-stroke, air-cooled, direct
injection |
| Cylinder Diameter*stroke(mm) | 78*62mm |
| Piston displacement (L) | 0.296L |
| Compression ratio | 19 |
| Max. no-load speed(r/min) | 108% of Rated rotary speed |
| Min. no-load speed(r/min) | 1300 |
| Lubrication system | Pressure splash complex Type |
| Engine starting system | Recoil starter or Electric starter |
| Output terminal rotation | AnticlockWise |
| Fuel oil model | Summer:0#, Winter:-10# |
| Fuel tank capacity (L) | 3.5L |
| Fuel consumption rate(g/kW.h) | 275/3000 280/3600 |
| Oil consumption rate(g/kW.h) | 4.08 |
| Oil grade | CD grade or SAE10W-30,15W-40 |
| Valve clearance(cold state) mm | 0.10-0.15 |
| Lube oil capacity (L) | 1.65 |
| Starting motor (V,kW) | 12V 0.8kW |
| Charging generator(V,A) | 12V 3A |
| Battery capacity(V,AH) | Above 12V-36AH |
| Dimension (L*W*H)(mm) | 520*520*570mm |
FAQ
1.Q:Are you a factory or trading company?
A: We are a factory.
2.Q:Where is your factory located?
A: Our factory is in Taizhou City, Zhejiang Province, China.
It's near Ningbo & Shanghai port.
It's about 15minutes from Luqiao air port by car, 45 minutes from
Wenlin train station by car.
3.Q:What is the material of your products
A: Iron,Steel,plastic,etc.
4.Q:How about quality control in your factory?
A:"Quality is first, Customers are friends".
Taizhou Belten people are always paying great attentions to quality
controlling from the beginning to the end. Every piece of goods is tested strictly one by one before packing.
We keep goods to meet the standard of CE,CCC, ISO9001:2000.
5.Q:How about guarantee?
A: It's within three months after goods is discharged in the
destination.
During that period,if some breakdown easily spare parts need to
change,my factory offers free.
For example, fuel cock,spark plug,starting hand,etc.
