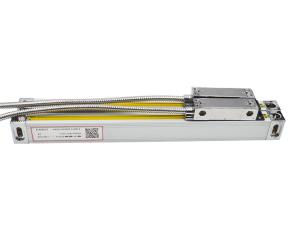

    50 - 1000 Mm Optical Cnc Linear Ruler For Mill Lathe Machine Tools

    50 - 1000 Mm Linear Ruler For Mill Lathe Machine Tools




    Product Specification


    Easson product linear encoder is widely use in milling machine, lathe, grinding machine,

    EDM, Boring etc.. we can supply customize OEM products such as grating of special types and specifications,

    with other apparatus and mechanical equipments.

    GS10GS11GS12GS13GS20GS21GS22GS23GS30GS31GS32GS33
    Measuring StandardGlass Scale - Grating period: 20μm (0.02mm)
    Optical Detecting SystemTransmissive Infrared System: wave length 880mm
    Slide Carrier SystemVertical five bearings supporting system45° five bearings supporting systemVertical five bearings supporting system
    Resolution5μm1μm5μm1μm5μm1μm5μm1μm5μm1μm5μm1μm
    Measurement Travel50-1200mmEvery 50mm per length Spec.Not availableEvery 50mm per length Spec.
    1300-3000mmNot availableEvery 100mm per length Spec.Every 50mm per length Spec. up to 500mm
    Accuracy100-450mm±8μm±5μm±8μm±5μm--±8μm±5μm±8μm±5μm
    500-800mm±10μm±8μm±10μm±8μm----
    1050-2000mm±15μm±12μm±15μm±12μm----
    1300-3000mm--±25μm--
    Repeatability2μm (0.002mm)
    Hystersis3μm (0.003mm)
    ProtectionIP 53
    Power supplyDC 5V ± 5%
    Output SignalTTLTTL422422TTLTTL422422TTLTTL422422



    Installation Dimensions




    GS10 / GS11 / GS12 / GS13 Series


    GS30 / GS31 / GS32 / GS33 Series




    Connector interface




    DSUB 9PIN

    PINTTL422A
    SignalCableSignalCable
    1————A-Yellow
    20VOrange0VWhite
    3————B-Red
    4GNDGNDGNDGND
    5————R-Black
    6AYellowAGreen
    75VRed5VBrown
    8BGreenBBlue
    9RBrownRGrey

    DIN 7PIN

    PINCableTTL
    1Orange0V
    2————
    3YellowA
    4GreenB
    5Red5V
    6BrownR
    7GroundGND
    CaseGroundGND



    Product Description




    Advanced Optical Measuring System


    The slide carrier of GS series linear encoder, use a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market.


    Double Seals Design

    GS series linear encoder's sealing lip use an innovative material to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lips geometry offer low slide resistance.


    100% Laser calibration

    Linear encoders are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.


    Accuracy report


    Each linear scale is printed with a QR code, which is convenient for users to view the accuracy report of the factory inspection.
