    Micro Lathe Milling Machine Cnc Linear Encoder Scale For Milling Machine

    Ask Lasest Price
    Brand Name : Easson
    Model Number : GS90
    Certification : CE
    Payment Terms : T/T
    Supply Ability : 2000 PCS per Month
    Delivery Time : 3 working days
    • Product Details
    • Company Profile

    Micro Lathe Milling Machine Cnc Linear Encoder Scale For Milling Machine

    Easson Manufacturer Micro Linear Encoder Special For Micro Lathe & Milling Machine

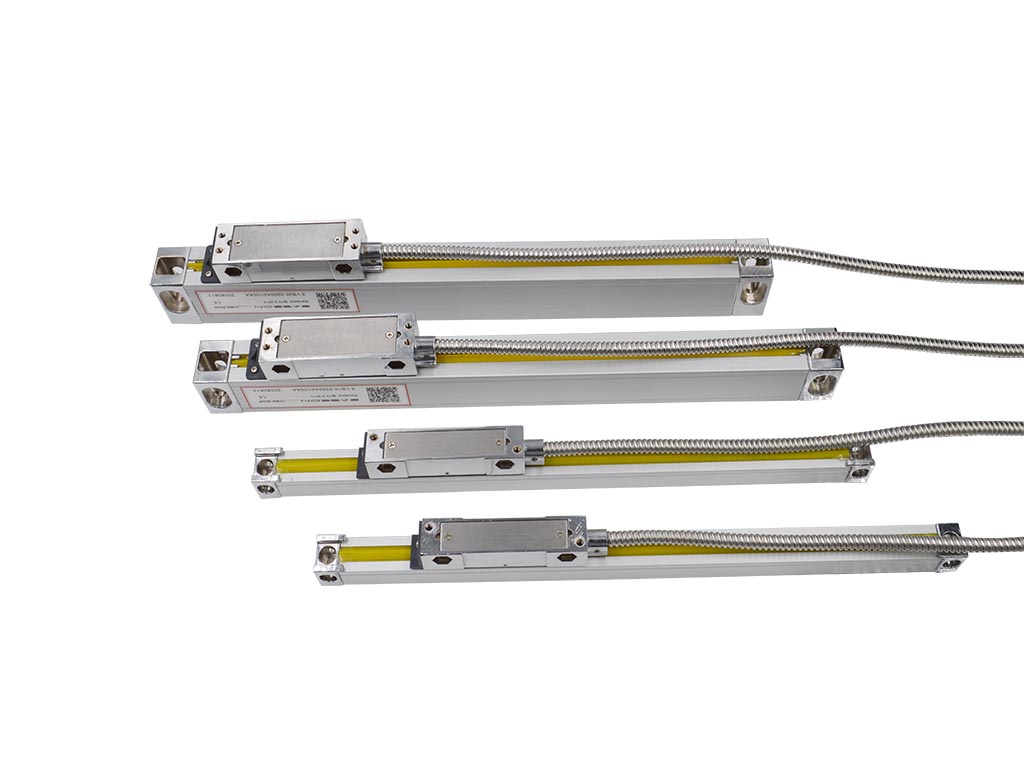

    Product View




    Advanced Optical Measuring System

    The GS series scales of the slide carrier , use a five bearing design for optical grating linear transducer, reliable and low cost.


    Sealing Lip

    The plastic seals of GS series scales use an innovative material to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lips geometry offer low slide resistance.


    Specification


    GS90
    Measuring StandardGlass Scale - Grating period: 20μm (0.02mm)
    Optical Detecting SystemTransmissive Infrared System: wave length 880mm
    Slide Carrier SystemVertical five bearings supporting system
    Resolution5μm
    Measurement Travel50-500mmEvery 50mm per length Spec. up to 500mm
    Accuracy50-500mm±10μm
    Repeatability5μm (0.005mm)
    Hystersis5μm (0.005mm)
    ProtectionIP 53
    Power supplyDC 5V ± 5%
    Output SignalTTL



    Installation Diagram







    Connector interface




    DSUB 9PIN

    PINTTL
    SignalCable
    1————
    20VOrange
    3————
    4GNDGND
    5————
    6AYellow
    75VRed
    8BGreen
    9RBrown

    Linear encoder's connector using gold-plated pins to avoid poor contact, ensure it has long service life.


    100% Laser calibration

    All glass grating transducers are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.


    Accuracy report

    Each linear encoder is printed with a QR code, which is convenient for users to view the accuracy report of the factory inspection.


    FAQ:


    1. Q: Did you accept OEM customized service?

    A: Of course, we can provide not only typical products but also the products customized to customer's request based on the order quantity.


    2. Q: What is your company mainly produce?

    A: We are mainly produce Vision Measurement Machine, Optical Profile Projector, Digital Readout System(Counter), Linear encoder glass scale.


    3. Q: Are the Length of this model has 1000mm?

    A: Normally, GS90 series only available for the length 50 to 500mm, we don't suggest using this model for long dimension measuring due to its thin scale body structure(Insufficient rigidity).


    4. Q: How can I identify Easson GS10, GS30 , GS90 , VS10 and VS20 model?

    A: We has the product code label stick on the scale body, also each model deimension is different. For their structure, GS series using a five bearing design and one spring for Optical grating linear scale's carrier;But for VS series, it is totally different with GS which it has 6 spring push & pull structure, more accuracy than GS scale.


    5. Q: How long dimension for the linear encoder scale you can produce?

    A: Up to now, we can produce the maximum 3000mm long glass scale.
