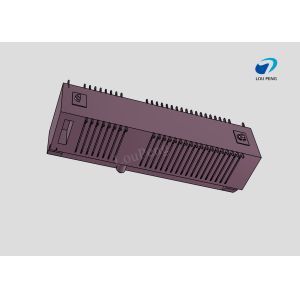

    MIni PCI Express 52 Pin 11.95 height

    Ask Lasest Price
    Brand Name : LP
    Model Number : LP-MP005
    Certification : ISO-9001:2000
    Price : 0.0001
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100000pcs
    Delivery Time : 7~10 days
    • Product Details
    • Company Profile

    MIni PCI Express 52 Pin 11.95 height

    Product Description
    Connector system: board to board
    Sealable: no
    Connector and terminal end connection: printed circuit board
    PCB mounting direction: horizontal
    Stackable: No
    The number of rows: 2
    Number of Positions: 52
    Number of keys: 1
    Catapult position: None
    Terminal base material: copper alloy
    PCB terminal end area electroplating material: gold plating
    Terminal base plate material: Nickel
    Electroplating material for terminal contact: gold plating
    Surface coating of electroplated material for PCB terminal end area: matte finish
    Terminal rated current (Max.) (A):.5
    PCB end connection method: surface mount
    Type of insertion: CAM
    PCB mounting and fixing: without
    Type of joint alignment: polarization, polarization
    Shell color: black
    Shell material: thermoplastic
    Spacing: 8 mm [.031 in]
    Height above PC board (in):.205
    Stack height: 11.95mm [.205 in]
    Centerline (spacing) :.8 mm [.031 in]
    Operating temperature: -55 -- 85 °C [-67 -- 185 °F]
    Circuit application: Signal
    UL flame retardant rating: UL 94V-0
    Bus type: Mini PCI Express
