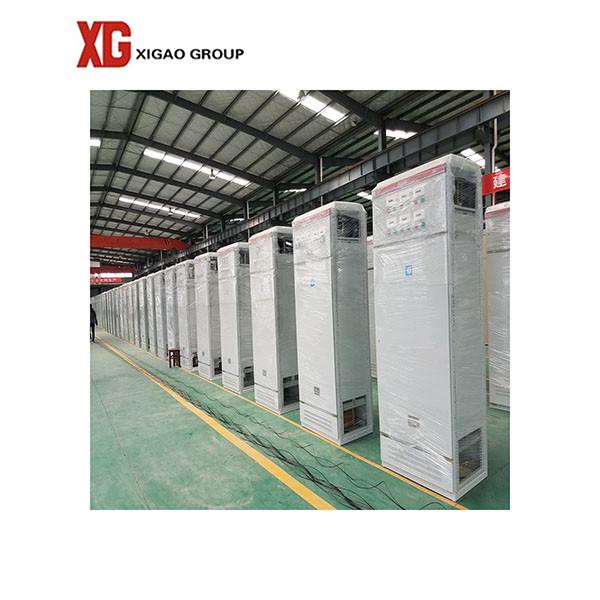

GGD-0.4 400V Low Voltage Distribution Panel Cubicle Switchboard

1. GGD-0.4 type indoor 400v low voltage distribution panel cubicle switchboard

GGD-0.4 type indoor 400v low voltage distribution panel cubicle switchboard is applicable to power consumers of power plants, substations, industrial and mining enterprises and is used for electric energy conversion, distribution and control of power, lighting and power distribution equipment in power distribution system with AC 50Hz, rated operating voltage of 380V and rated operating current of up to 3,150A.

2. Product parameter OF cubicle switchboard

3. Product condition OF cubicle switchboard

Ambient air temperature : -5°C ~ +40°C;

Daily average temperature(Within 24h): ≤+35℃

Relative humidity: ≤50% at the maximum temperature of +40℃ and may be higher at lower temperature, for example, 90% at +20℃.

Altitude:≤2,000m;

Installation inclination:≤ 5°;

Installation places: Indoor; without fire, explosion risk, serious pollution, rain immersion, violent vibration,chemical corrosion and conductive dust.

5. Factory strength

6. Delivery diversifition

7. FAQ

1. Our factory is 250000m2 for production and office.

2. There are four subsidies in our group company. So our whole group company can produce switchgear, power transformer, load break switch, disconnect switch, vacuum/sf6 circuit breaker, fuse, surge arrester, CT PT, Metering unit.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

XIGAO Electricenergy Group Co., Ltd is founded in 1993, 320000m2 plant, specialized in manufacturing high & low voltage power transmission and distribution (PTD) equipment, always focusing on the business at collection of research, design, OEM, ODM and trade in CN.

After 25 years innovation and effort, we build-up five wholly-owned subsidiaries (XIGAO transformer manufacturing co., Ltd, XIGAO power Equipment Co., Ltd, XIGAO power transformer manufacturing co., Ltd, XIGAO CB manufacturing co., Ltd, XIGAO Fuse accessories technology co., Ltd).meanwhile, we also gained government recognition and praise in Chinese market.

As the backbone enterprise, our group devotes to serving the power industries and tender company, installment firm at home and abroad, such as Xi'an Satellite Monitoring Center, CN Institute of Aerospace Technology Group VI, Changqing Oil Field, XAC International, Shougang Corporation, Panzhihua Iron& Steel Group, CN Southern Power Grid EHV transmission Ltd, Huazhong University, CN Metallurgical, China Electric Power Research Institute, China Railway Erju Co,.Ltd, CN Railway Engineering Group Ltd. Overseas cooperation projects: Russia, Kazakhstan, Turkey, Nigeria, Singapore, Malaysia, Bangladesh, Mongolia, Iran, Indonesia etc.

Featured and shiny products:

1. Switchgear series: H.V. Switchgear cabinet, M.V switchgear, L.V. switchgear cubicle, ring main unit

2. Substation series: combined substation, prefabricated substation

3. Load break switch series：indoor LBS, outdoor LBS.

4. Disconnecting switch series: indoor disconnector, outdoor disconnected switch

5. Power transformer series: oil type transformer, dry type transformer

6. current transformer(CT) series: oil immersed current transformer, dry type current transformer

7. voltage transformer(VT) series: oil immersed voltage transformer, dry type voltage transformer

8. metering unit series: oil immersed metering box, dry type metering box

9. Fuse series: current limiting fuse, drop out fuse

10. Insulator series: composite type insulator, porcelain type insulator

11. circuit breaker series: outdoor vacuum circuit breaker, indoor vacuum circuit breaker, SF6 circuit breaker

12. Arrester series: Porcelain Surge Arresters, Zinc Oxide Arresters

13. Wall bushing series: porcelain wall bushing, rubber wall bushing

14. Cable branch box and other related distribution products.
