    PIN RS232 16 Keys Industrial Numeric Keypad 4X4 matrix

    Ask Lasest Price
    Brand Name : KINGLEADER
    Model Number : MKP115-16F
    Certification : CE,FCC,ROHS
    Price : US$55/pc Exworks
    Payment Terms : T/T,Paypal, L/C, D/A, D/P, Western Union
    Supply Ability : 2000pcs/month
    Delivery Time : 7-12 days
    • Product Details
    • Company Profile

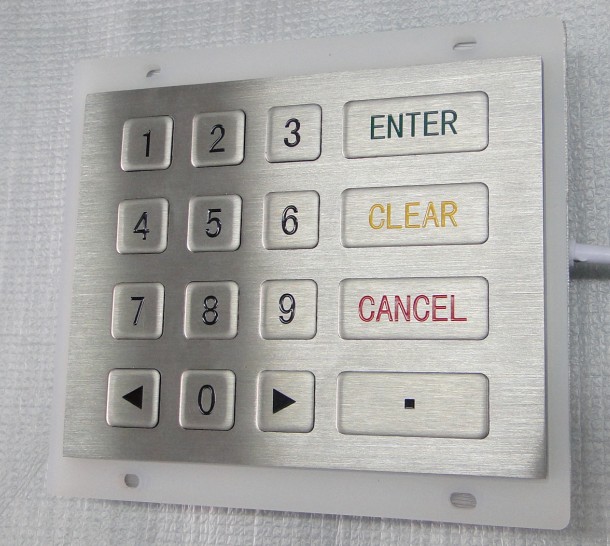

    PIN RS232 16 Keys Industrial Numeric Keypad 4X4 matrix

    Number Keypad Industrial Metal Keypad with 16 Flat Keys and OEM available


    Part Number:MKP115-16F


    Rugged stainless steel,water-proof,vandal-proof keypad with 16 flush keys


    Key Features:


    ● 16 flush keys,crispy tactile feedback,bigger size for function keys.

    ● Key in 4 X 4 matrix

    ● Panel mount,mounted from the rear side

    ● Exposed parts made of stainless steel,high resistance against destruction,rust etc

    ● Dust-proof and liquid-proof, IP65 compliance after properly mounted

    ● Layout customizable according to customer’s request

    Application: ATM, ADM, CDM, unattended payment terminals, vending machines, ticketing machines, gaming machines,kiosks,workstation etc.


    Technical Specification

    Material

    Front panel & Keys

    304 stainless steel

    Number of Keys

    16

    Matrix

    4 x 4

    Function

    Non backlight

    Electrical Data

    Interface

    USB or PS/2 or RS232(With electronic controller board)

    8PIN connector (Without electronic controller board)

    Certification

    CE,FCC

    Environmental Characteristics

    Operating temperature

    -20º C to + 60º C

    Key travel

    0.45mm

    Lifetime (cycles)

    Min 5, 000, 000 actuations

    Sealing protection

    IP65/NEMA4X from the front

    Layout

    Customizable available

    Dimension

    115.00 x 92.00 mm (W x D) (front panel)

    Application

    ATM, ADM, CDM, unattended payment terminals, vending machines, ticketing machines, gaming machines, kiosks, workstation etc.
