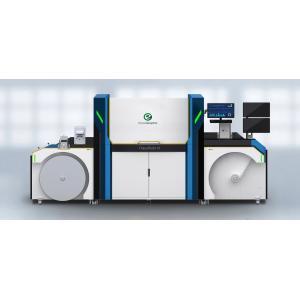

Digital Flatbed UV Inkjet Printing Press Printer for Laminated
Coated Material
RG PLUS
Flexo Printing, Laminating,Die Cutting Optional
1) Innovation and Intelligent Manufacturing
The label printing market is going through a transaction period
where run lengths are becoming shorter and shorter, media costs are
increasing, margins are shrinking and fast turnaround time to
market is creating huge pressure on label printers. Here
EcooGraphix &Winbosc bridges the gap between the end users, the
brand owners and the label printers enabling them to print on
demand.
EcooGraphix &Winbosc Printing Press tilizes the PiezoDOD inkjet
print head technology that enables it to print high quality labels
at 600*600 DPI native resolution at speeds up to 70m/min and up to
330 mm of print widths, delivering the expectations of a label
printer in terms of lowest total cost of ownership and fastest
return on investments.
Digital is the future, so is the Digital press, it comes with the
power of printing short to medium runs very effectively and
economically, additionally featuring great value of
personalization, variable data and security printing in real time
production at one go.
2 )The advantages of UV Inkjet Printing Press
● Initial proofing and instant response
● No reprographics and plate cost
● Reduced SKU's for brand owners & inventory for label printers
● Quick versioning of repeat jobs & minimum wastage in job
changeover
● Easy upgradation on field & costly operations savings
● No click charges-Pay as per usage
● UV Ink - highly durable, chemical and moisture resistant
● Prints on standard Flexo materials, many without the need to
pre-coatreatment
● Variable data printing
| Printing Technology | UV Piezo DoD-inkjet |
| Resolution | up to 1080*360 dpi |
| Printing speed | 10m/min - 60m/min(depend on polymer layer thickness) |
| Variable Image system | PDF, optimized PDF, Optional barcode system |
| Supported image standards | PDF,PDF/VT,TIFF, JPEG, BMP & other data base files |
| Substrates | Offset, Digital, Plastics, Laminated and coated substrates |
| Printing image size | Maximum-Width 280mm x Long 10 m |
| Polymer | WB-DS-Clear Polymer |
| Polymer layer thickness | From 10 up to 50 microns |
| Ink curing | Inter UV-LED Pre-curing/Full curing by UV-LED |
| Unwinder diameter | Max. 700mm, Core 76mm |
| Rewinder diameter | Max. 700mm, Core 76mm |
| Substrates thickness | 30-400 micro |
| Substrates width | 330mm |
| Press with Foil station dimensions (LxHxW) | 3500mmx1900mmx1800mm |
| Operating environment | Temperature: 15ºC-30ºC, Humidity: 40%-80% relative humidity |
| Electrical requirements | Voltage: 3x380, ±5% 3 phases +G+N
Frequency: 50/60 Hz
Current: Avg. 25 Amps in Production |
| weight | 2800kg |
