Industrial 1kg Payload Robot Manipulator Can Be Combined With
Camera
Product description:
At present, robots that can be combined with vision systems are
widely used in industry,In the application of industrial robots,
industrial robots with vision capabilities will improve production
efficiency compared to traditional industrial robots, and at the
same time, production safety issues will also be
improved,especially in the sorting and defect detection of small
parts,it has outstanding advantages.It can obtain a two-dimensional
image of the environment through a vision sensor, analyze and
interpret it through a vision processor, and then convert it into a
symbol so that industrial robots can recognize objects
Therefore, the industrial application of a robot with a load of 1kg
and a vision system can greatly improve productivity, improve
process and product quality, enhance competitiveness, and increase
agility and flexibility to meet customer needs.
Feature:
1. Easy to learn and operate.
2. Control and drive integration.
3. The repeatable positioning accuracy is less than±0.05mm.
4. Wide range of applications.
5. Cost-effective
6. Wireless tablet control.
Robot parameter
| Model | HK5404,HK5403 |
| Working radius | 160mm-540mm |
| Number of axis | 3 axis or 4 Axis |
| Installation | Floor/table |
| N.W. | 13kg |
| Repeat Positioning Accuracy | ±0.05mm |
| Payload | 0.001kg-1kg |
| Power Consume | 0.4KVA |
| Power supply | Input:Single phase 110V-240V 50Hz Output:DC 24V(400W) |
| Voltage rating | 220V |
| External communication | WIFI/Ethernet |
| Application | Picking and placing,Sorting,Defect detection |
| Safety standard | ISO 9001-2015 |
| Control software | Hulkbot Studio |
| Drive System | Steper motor |
| Working condition | -10°C~60°C |
| I/O | Input 5/Output 5 |
Working rang of each axis
| Axis | Working Range | Max Speed |
| Axis 1 | ±160° | 360°/s |
| Axis 2 | -42°~85° | 360°/s |
| Axis 3 | -20°~100° | 360°/s |
| Axis 4 | ±165° | 500°/s |
Application fields
1. Our products have been used by German companies
2. Auto parts fields
3. 3C area
4. Picking and placing small parts
5. Academic laboratory
6. Visual position detection
7. Visual defect detection
8. Food processing

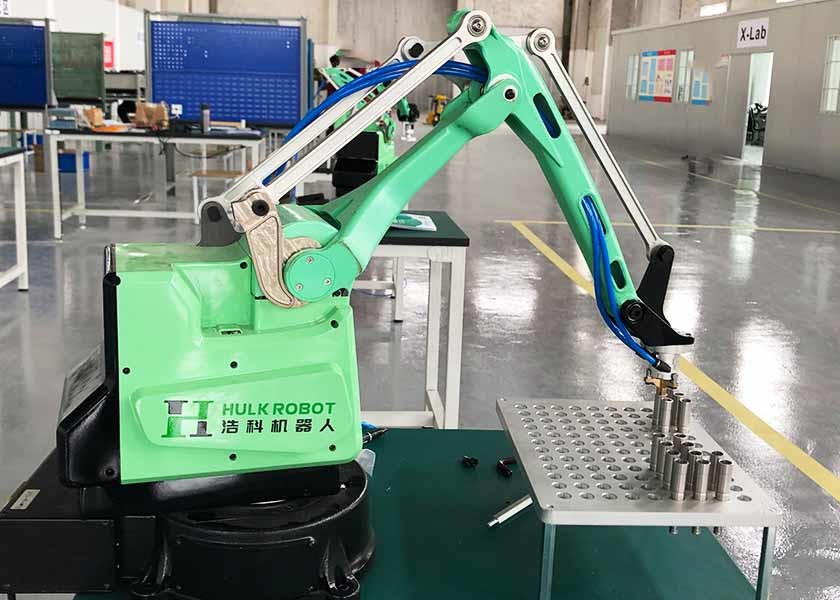

Detailed images
