Yangdong YSD490D diesel generator sets features:
Rated frequency 50/60 HZ
Rated voltage 230/400V, 220/380V, according to customers
Power factor: 0.8(lag)
Super Silent type Noise level at 7m ≤65DB
Excitation Mode: (Brushless) Self-excitation and constant voltage
(AVR)
Starting system: Electric start 12V/24V
Protection System: High water temperature protection, Engine oil
alarm, Over load Protection
Over frequency protection, Emergency stop
Control System: Digital Control Panel; Meter Panel
Option: ATS,AMF,Trailer,Container
| Manufacturer | Jiangsu Mingbang Intelligent Technology Co.Ltd |
| Model | MB-YD20 |
| Prime Powder | 18KW/22.5KVA |
| Standby Powder | 20KW/25KVA |
| Power Factor | COSΦ=0.8(lagging) |
| Max. Output current | 28.8 A |
| Genset Weight | 780 KG(NET) |
| Length x Width x Height (Engine) (mm) | 2200x730x1140 |
| Rated Voltage | 400/230V |
| Frequency | 50HZ |
| Engine Specification |
| Manufacturer | Yangdong |
| Model | YSD490D |
| Rated speed | 1500rpm |
| Prime Powder | 20KW/25KVA |
| Standby Powder | 21KW/26.25KVA |
| Fuel Consumption | <=247.5g/KW.H |
| Lube oil capacity | 6.5 L |
| Bore (mm) x Stroke (mm) | 90x100 |
| Compression ratio | 18:1 |
| Displacement (litre) | 2.54L |
| Coolant capacity, L | / |
| Configuration | 4 in line ,four-stroke, Turbocharged, Charge Air Cooled |
| Cooling | Liquid Cooled |
| Governor type | Mechanical |
| Starting voltage | 24 Volts DC |
| Filtration system | Air Filter,Fuel Filter,Oil Filter |
| Alternator Specification |
| Manufacturer | Jiangsu Mingbang Intelligent Technology Co.Ltd |
| Model | MBC184E |
| Voltage Regulator | AVR(Auto-voltage stabilization) |
| Voltage adjust range | ±1% |
| Rated Voltage/Frequency/Factor | 400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire |
| Steady-state Frequency | better than 5% |
| No-load Voltage Adjust Range | >=95%-105% |
| Insulation Class | H |
| IP Protection | 23 |
| Excitation Type | Single bearing, Brushless, Self-excited |

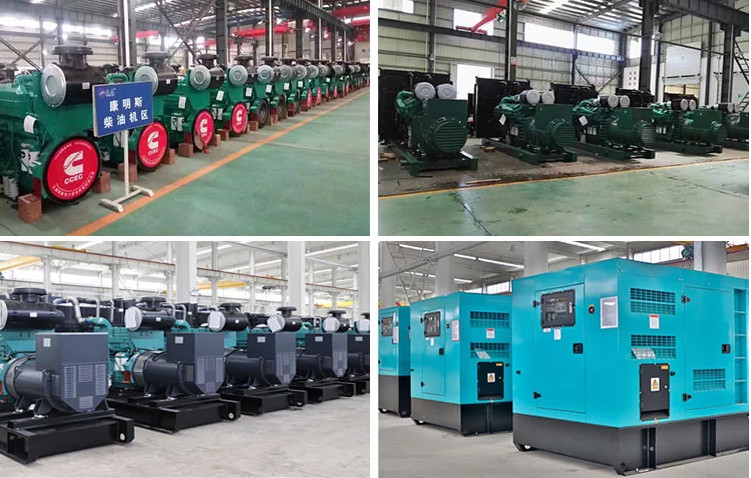

Our factory
Mingbang Co.,Ltd is the professional manufacturer of power
generator, light tower and air compressor in China. We provides a
complete line of generators for commercial,industrial and
residential application.We specialize in providing a wide range of
well known and trusted brands of diesel generators, supplying
generators from 5kw to 2000kw at competitive prices.
Besides generators, we also product the refer product include
lighting towers and air compressor. At the same time, we also
provide the reference electrical products, include ATS,
Synchronization system & switch gear.
Diesel Standby Generator Dynamo Diesel Generator Perkins Volvo MTU
Cummins Exclusive Distributor

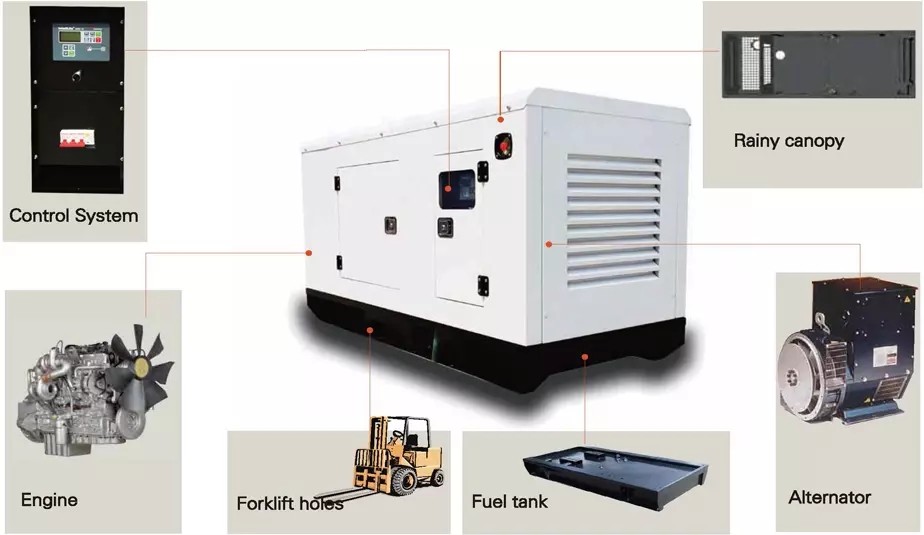

1a. Diesel engine
1b. Alternator
1c. Control panel
1d. The accessories, Wave pipe, Curved Pipe, Muffler, Accumulator,
The connecting wires, Shock absorber spacer, Bellows, Documents and
data and so on
Your further inquiry will be welcome!!
