    Android RS232 IP68 CMOS Fixed Barcode Reader Dual Trigger Mode

    Ask Lasest Price
    Brand Name : RAKINDA
    Model Number : LV3000UPLUS
    Certification : CE, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, Paypal
    Supply Ability : 200PCS/Week
    Delivery Time : Within 5 working days after receiving the balance
    • Product Details
    • Company Profile

    Android RS232 IP68 CMOS Fixed Barcode Reader Dual Trigger Mode

    Rakinda LV3000U PLUS Industrial Fixed Barcode Reader Android Barcode Scanner Module
    Fixed Mount Barcode Scanner Product Features
    * IR / light sensor dual trigger mode
    * Excellent 1D/2D barcode reading performance * Automatic exposure control
    * Clear laser cross aiming light
    * IP68 protection rating * 3 m anti-drop



    Courier Cabinets, Ticket Checking Machines, Display Kiosks, Various Self-service Cabinet Application Equipment, Etc., Very Suitable for Use in Various Production Lines, Assembly Line Barcodes Detection and Scanning.

    Product Parameters

    PerformanceImage Sensor1280*800 CMOS
    Illumination AimingWhite LED laser diode or gree LED
    Symbologies2DPDF417, QR Code, Data Matrix, AZTEC, CSC, Maxicode, Micro QR, Micro PDF417, GM, Code One, ect.
    1DEAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, ITF, ITF-14, ITF6, Standard 25, Matrix 25, COOP 25, Industrial 25, MSI Plessey, Code 11, Code 93, Code 49, Code 16K, etc.
    Resolution>=3 mil
    Typical Depth of FoeldEAN-1355-360mm(13mil)
    Code 3970-180mm(5mil)
    PDF41755-160mm(6.7mil)
    Data Matrix50-170mm(10mil)
    QR Code40-210mm(15mil)
    Scan ModeSense mode, Continuous mode, Level mode, Pulse mode
    Scan AngleRoll:360d, Pitch:±55°, Skew:±55°
    Field of ViewHorizontal 51°, Vertical 32°
    Min Symbol Contrast25%
    Mechanical ElectricInterfaceRS-232, USB
    Dimensions63(W)*45(D)*28(H)
    Weigh75g
    NotificationBeep, LED indicator
    Rated Power Consumption1622mW(typical)
    Operating Voltage5VDC±-5%
    Current SVDCOperating276.8mA(typical), 322.7mA(max.)
    Standby83.3mA
    EnvironmentalOperating Temperature-20℃ to 60℃(-4℉ to140℉)
    Storage Temperature-40℃ to 70℃ (-40℉ to 158℉)
    Humidity5% to 95% (non-condensing)
    ESD± 14kV (air discharge), ±8kV (direct discharge)
    Drop1.5m
    SealingIP68
    CertificationsFCC Part1S Class& CE EMC Class B, RoHS, IEC60825, IEC62471, KC
    EnvironmentalCableUSBUsed to connect the LV3000U to a host device
    RS-232Used to connect the LV3000U to a host device
    Power AdapterDC5V adapter to power the LV3000U with RS-232 cable

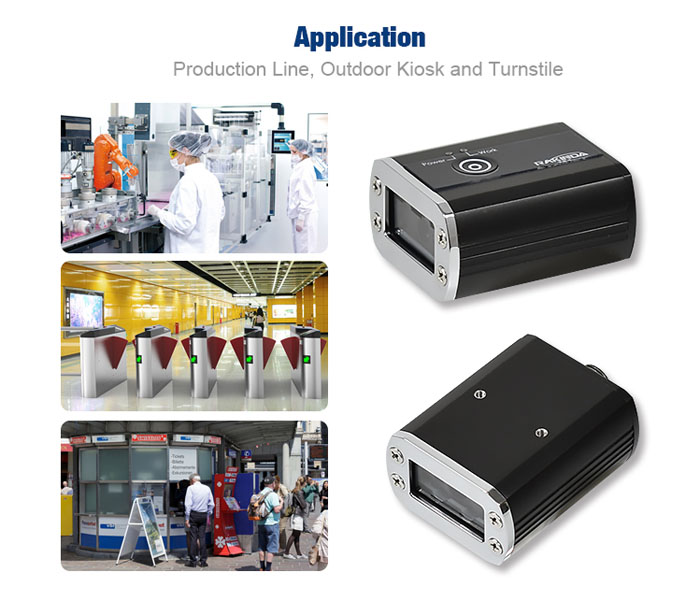

    Application Scenario



    LV3000U Plus Barcode Scanner Datasheet.pdf
