YG6 YG8 YG10 VIRGIN CARBIDE MATERIAL HIP SINTERED CARBIDE RODS 100%
VIRGIN TUNGSTEN CARBIDE
Tungsten
Carbide Rod
Material: 100% Virgin Tungsten Carbide
Diameter: 1-46mm
Surface: Blank, grounded or mirror polished
Process: extruded, HIP sintered
Application: For making tools, end mills, drills etc.
Grade: K10 YG6 K20 YG8 YG10X YL10 YG12 YG15
Chemical Composition: tungsten carbide and cobalt powder
Model No.: All sizes available
Length: 10-330mm
Packaging Details Paper or plastic box inside, carton outside; Or
as per customers' requirement.
Product Name: Tungsten carbide rods
Diameter: 1-46mm (by HIP Extrusion)
Standard Length: 310/330mm, non-standard length also available
Widely used in end mills, drills, PCB drills, PCB routers etc.
Speciications:

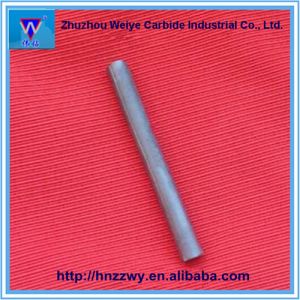

Below are the product picture and drawing of polished tungsten
carbide rods for your reference. For more details, please inform
us.
| Tungsten carbide Rods |
| Type: Diameter x Length | | | |
| Size:(D.x L,mm) | Tolerance |
| D(Black,mm) | D(Ground,mm) | L(mm) |
| Dia.1-5mm x 330 | +0.30/+0.45 | h6/h7 | 0/+5 |
| Dia.6-20mm x 330 | +0.20/+0.60 | h6/h7 | 0/+5 |
| Dia.21-40mm x 330 | +0.20/+0.80 | h6/h7 | 0/+5 |
Our Advantage:
- Competitive price.
- Our strengths over other suppliers.
- Reliable quality on the base of the same price.
- Timely delivery as your requirements.
- Professional service to cut much purchasing costs down.
Grade:
| Grade | Density(g/cm3) | Hardness HRA(HV | T.R.S(MPA) | Performance & applications Recommended |
| YG8 | 14.9 | 89.5 | 2150 | Good wear resistance, used for hard wood, processing original wood,
aluminum section bar, brass rod and cast iron. |
| YG6 | 14.6 | 89 | 2320 | Suitable for the roughening of cast iron and light alloy and also
for the milling of cast iron and low-alloy steel. |
| YG11 | 14.4 | 87.5 | 2260 | Medium grain, for wear parts and mining tools |
| YG15 | 14.1 | 86.5 | 2400 | Medium grain, for mining tools, cold heading and punching dies |
| YS2T | 14.45 | 92.5 | 2800 | Fine carbide, high wear resistance, high bending strength, high
resistance to bonding, high thermal strength. machining of
refractory alloys, stainless steel and high manganese steel, etc.
Mainly used for disc cutter and other tools. |
| YL10.2 | 14.5 | 92.5 | 3400 | Wear resistance and strength comparatively higher, suitable for
processing cast iron. non-ferrous metal and non-metalloid
materials. |
| YN8 | 14.6 | 88.5 | 1710 | This grade with 8% nickel binder, it has good wear resistance &
corrosion resistance performance, especially used for high pressure
environmental, also good for cutting titanium alloy. |
1), packaging with moisture-proof paper
2), packaging with kraft paper or white paper
3), packaging with foam plastics in all side of plywood case.
4), packing products in plywood case
