10 T/H Capacity Rotary Drum Granulating Machine Designed For NPK
Compound Pellets Making

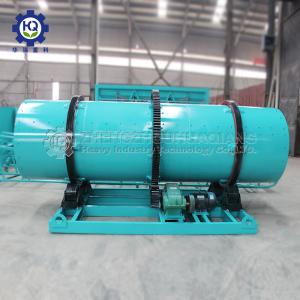

Introduction to rotary drum granulating machine
Rotary drum granulator is a molding machine that can make powder
material into particle shape. Rotary drum granulating machine is
one of the key equipment in the NPK fertilizer industry, which is
suitable for large-scale production of cold, hot granulation and
high, medium and low concentration NPK compound fertilizer.
Specifications of rotary drum granulating machine
| Model | Barrel | weight | Product Capacity | Motor |
| Inclination | Outer
Diameter | length | Rotation speed | Model | Power |
| ° | mm | mm | r/min | t | t/h | kw |
| ZGJ1240 | 2.5 | 1200 | 4000 | 17 | 2.7 | 5 | Y132S-4 | 5.5 |
| ZGJ1450 | 2.5 | 1400 | 5000 | 14 | 8.5 | 7 | Y132M-4 | 7.5 |
| ZGJ1660 | 2.5 | 1600 | 6000 | 11.5 | 12 | 9 | Y160M-4 | 11 |
| ZGJ1870 | 2.5 | 1800 | 7000 | 11.5 | 18.5 | 12 | Y160L-4 | 15 |
| ZGJ2080 | 2.5 | 2000 | 8000 | 11 | 22 | 16 | Y180M-4 | 18.5 |
| ZGJ2280 | 2.5 | 2200 | 8000 | 10.5 | 28 | 20 | Y180L-4 | 22 |
Working principle of rotary drum granulating machine
The rotary drum granulator main working method is aggregate wet
granulation. Through a certain amount of water or steam, basic
fertilizer mixed wet in drum granulator tube body after the full
chemical reaction. Under a certain liquid conditions, in virtue of
rotary exercise of the rotating cylinder, so that material granules
have an extrusion stress, reunite to ball.
Features of rotary drum granulating machine
1. The rotary drum granulator has high granulation rate about above
70%, the unqualified granules can be re-granulated.
2. Hot steams improve material moisture, which makes compound
fertilizer granulation easy.
3. The rotary drum fertilizer granulating machine finished inside
of polyethylene makes raw materials difficult to stick the body,
anti-corrosion insulation.
Advantages of rotary drum granulating machine
1. Polyethylene plastic plates are fixed in inner drum to prevent
sticking and protect drum from corrosion.
2. Drum is placed obliquely in brackets which is made of robust
carbon steel plates and channel beam.
3. Inside the drum wall is shoveling plates for easy granulating
and cleaning.
4. Rotary drum is made from our vertical lathe, which is strong and
solid enough for granulating.
Applications of rotary drum granulating machine
1. DAP (di-ammonium phosphate) and MAP (mono-ammonium phosphate)
2. NPK Grades
3. Ammonium Sulfate
4. TSP (triple super phosphate) and SSP (single super phosphate)
5. Urea
FAQ
1. Are you manufacturer or trading company?
We are professional manufacturer of fertilizer processing machines
and related machines,such as compound fertilizer revolving drum
granulator,crusher machine, mixer machine, packing machine,compost
turning machine and conveyor belt etc.
2. How about the delivery time?
It can be shipped immediately for the machines in stock,and 5-7days
for the machines out of stock.
3. How long is the guarantee period?
Warranty for 12 months without artificial and deliberate damage.
