35T Hydraulic Vertical Injection Molding Machine

    Buy cheap 35T Hydraulic Vertical Injection Molding Machine from wholesalers

    Buy cheap 35T Hydraulic Vertical Injection Molding Machine from wholesalers
    • Buy cheap 35T Hydraulic Vertical Injection Molding Machine from wholesalers

    35T Hydraulic Vertical Injection Molding Machine

    Ask Lasest Price
    Brand Name : Hommar
    Model Number : Vertical Injection Molding Machine
    Certification : CE,RoHS
    Price : USD 29000/pcs
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 200 pcs per month
    Delivery Time : 35-45 working days
    • Product Details
    • Company Profile

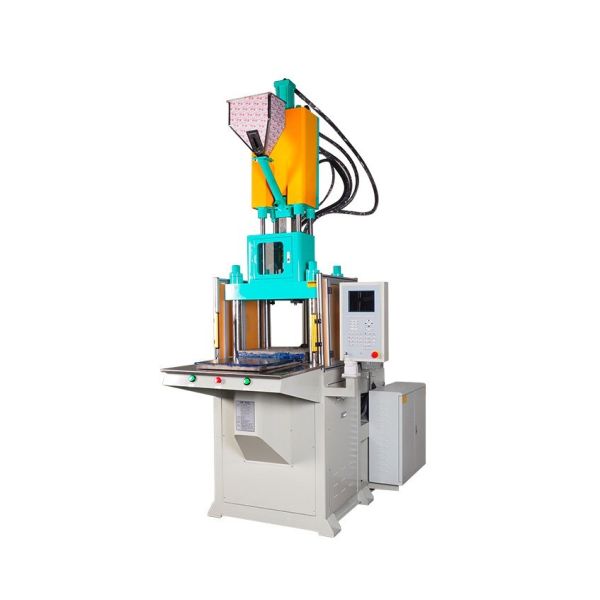

    35T Hydraulic Vertical Injection Molding Machine

    Hydraulic Style China Vertical Power Cord Cable Injection Molding Machine 35 Ton​


    Machine Description
    1.Vertical clamping / injection, suits for injection of common plugs and Small electronic parts.
    2.Two or three-sections temperature control, adjustable injection speed and screw speed, is suitable for various kinds of precision engineering plastic part shaping.
    3.Fixed Lower mould and movable upper die. Strong polarization for the insert items, the ejection device is included.
    4.Adopts imported fittings, low noise, high efficiency, high life-span, unique design, safe easy to operate and maintenance.
    Injection capacity96cm²
    Injection weight110g
    Max.Injection pressure1367kg/cm²
    Screw stroke200mm
    Clamping force35tons
    Screw speed rotation0-150r.p.m.
    Clamping stroke0-200mm
    Min.thickness of mold145mm
    Min.molud space360mm
    Max.shot Weight58cc/s
    Drive motor7.5kw
    Injector stroke28mm
    Oil tank capacity160L
    Dimensions1400x1100x2300mm
    Weight1.1t
    Screw diameter32 mm
    Packing
    All machines we sell will be packed with wood box, covered with steel tie on the surface in order to avoid damaging during
    delivery.Before the shipment, we will provide you some pictures of the goods and the package.Or the machine can be packed per your request.

    Our service
    ---Purchase guidance
    If you are not sure which model is the best option within you budget, please send us the parameter or wire, it’s our pleasure to make a recommendation and comparison models to you.

    ---After Sale Service
    Don’t worry, we are here to help.We provide professional after-sale Team, video technical support, online support. And our team also can go to your factory to provide field operating training

    ---Technical Support
    In some cases, professional technical support will be needed , such as parameter meter set-up for difficult-to process wires. AM engineers are here for your assistance.

    ---OEM
    AM provides OEM services to our customers.
