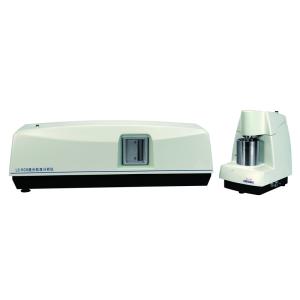

    Mie Scattering Laser Particle Size Analyzer For Powder Size Analysis

    Ask Lasest Price
    Brand Name : NANBEI
    Model Number : LS-609
    Certification : CE/ISO/SGS/TUV
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 set/per day
    Delivery Time : 7-10days
    • Product Details
    • Company Profile

    Mie Scattering Laser Particle Size Analyzer For Powder Size Analysis

    Mie scattering laser particle size analyzer for powder size analysis


    Brief introduction of laser particle size analyzer

    Details:

    LS-609 is a new intelligent and high-performance full-automated laser particle size analyzer based on LS-POP (9). The imported He-Ne laser emitter as light source can realize shorter preheating time and more stable laser power. The modern intelligent measurement control & analysis software and full-automated sample feeding system improve the user experience greatly, LS-609 owns more concise & effective measurement process and more stable & reliable results, it’s easier to compare among measurement reports.

    Applications of laser particle size analyzer

    Measure the particle size distribution of powder or latex.

    Principle:

    Light is an electromagnetic wave. When light meets with particles on it way of traveling, the interaction between light and particles will result in deviations of part of the light, which is called light scattering. The bigger the scattering angle is, the particle size will be smaller, the smaller the scattering angle is, the particle size will be bigger. The particle analyzer instruments will analysis the particle distribution according to this physical character of the light wave.

    Specifications of laser particle size analyzer

    1. Theory: Mie scattering

    2.: Measuring Range: 0.1~1000μm

    3. Sample Feeding: wet dispersion

    4. Repeatability: <1% (standard sample D50)

    5. Alignment: intelligent automated alignment, accuracy of alignment: 0.5μm

    6. Scan frequency: 1 kHz

    7. Measurement Duration: 1-2 minutes

    8. Detectors: 49

    9. Light Source: imported He-Ne laser, power: greater than 2.0 mW, wave length: 0.6328 μm

    10. Environmental Requirement:

    Temperature: 5-35℃

    Humidity:<85%

    11. Report Items: Particle size distribution table & graph, Average diameter, Median diameter, SSA, etc.

    12. Dimension(L X W X H):838 X 265 X 295mm (mainframe), 938 X 365 X 395mm (outer packing)

    Feature of laser particle size analyzer

    1. Reliable optical platform

    2. Optimized light path structure

    3. Advanced data collection and processing technology

    4. Friendly & practical software Functions

    5. Sampling system and its technical features
