Digital Electronic Solid State Analogue Cycle Timer For Solenoid Valve

Digital Electronic Solid State Analogue Cycle Timer For Solenoid Valve

Solid State cyclic, single shot and delay timers are used for simple automated ON/OFF control for solenoid valves, typically they fit directly between the solenoid valve coil and electrical DIN connector and come with a range either adjustable Time ON (Solenoid Valve Energised) and Time OFF (Solenoid Valve De Energised) or fixed timing cycles or schedules according to specific customer needs.

Typical Cyclic timers will provide LED Power ON and LED Power OFF indication, Manual Test button and most quality solid state cyclic timers will individually handle a voltage range from 24 volts to 250 volts with a current through put to the solenoid valve of up to 10 Amps.

Attention also needs to be focused on the Solenoid Valve coil / DIN Connector type and orientation. Obviously as these solid state cyclic timers fit between the coil and electrical connector they need to be the same DIN 43650 standard.

Repeat cycle timers, single shot timers and delay shot timers are supplied with either ISO 43650A form A and ISO 43650B form B fitment that typically fit directly between the solenoid valve coil and electrical Din connector without the need for additional time consuming wiring or cost of fitting.

Technical Data of Solenoid Valve Timer:

Main Dimension of Solenoid Valve Timer:

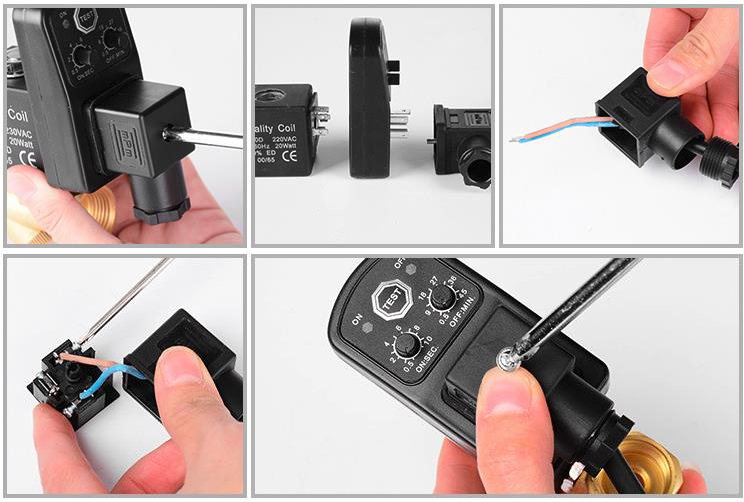

Installation of Solenoid Valve Timer:

More Timer Controlled Solenoid Valves for you to choose:

Applications
1. Sampling gas or Liquids
2. Air dryers
3. Effluent sampling
4. Sprinkler systems

Technical Specification

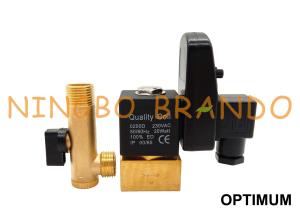

1. Auto drain valve: automatic discharge of condensate
2. Pneumatic vibration systems (e.g. Powder silos)
3. Automatic lubrication systems
4. Dosing systems

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!

* Since the company's inception, we are dedicated to providing high quality products and service to our customers. With focusing on our customers' demands, at before production we discuss technical points according to applications with customers to reduce mistake and save cost for both sides. During production, we use high precision CNC machine, machining center to control dimensions and improve productivity. At beginning and mid of machining, our senior inspectors check quality regularly by recording data on documents as per ISO9001 management system. Before shipment, our staff make testing and complete inspection one piece by one piece to ensure the products without defect when reached our customer's hands.

* Ningbo Brando Hardware Co., Ltd will offer you best service with fast response, let's make the fluid control application more widely and smartly.
