Automatic Double Glazing Processing Butyl Extruder Machine used in
Insulating glass machinery

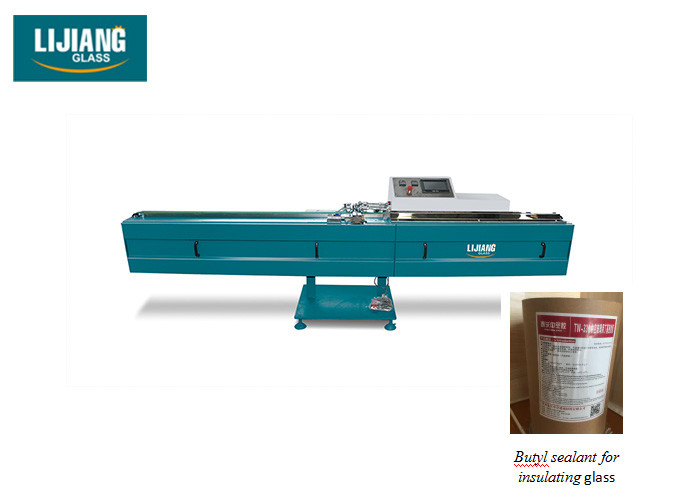

Product description of Small butyl extruder machine
Butyl sealing machine LJTB 01 is used for spreading aluminum spacer
frames evenly with hot melt butyl.Butyl extruder uses large electrical control panel which makes the
operation more easier than before.
Butyl extruder squeezing system adopts pneumatic and hydraulic
supercharging system, which makes the squeezing pressure more
stable. The dispensing cylinder adopts vertical rotary support
system, making the refill of butyl more easier. The height of
squeezing head can be adjusted automatically according to different
kinds of aluminum spacers.
Hot melt butyl extruder has reached the worldwide technology with
the characteristic of complete functions and stable working
mode.The conveyor of aluminum is controlled by frequency converter.
The speed can be adjusted from 0m/min to 47m/min.
Advantage
- Stable temperature device makes it convenient to adjust the sealing
material automatically according to the changed coating speed.
- Quickly heating function, preheat the machines with only 20 minutes
per day, improve work efficiency.
- The coating speed is up to 47m/min, save more than 40% butyl than
others, only need 7g/m.
Details of extrusion coating machine
1.Butyl Extruder adopt PLC control system ,touch screen interface
2.Butyl Extruder Equipment can automatically adjust the amount of
glue according to different speeds.
3.Butyl coating machine can be Quickly speed of warming,Up to 47m /
min,improve work effect.
4.Easy to change butyl,Glue cylinder of Butyl coating equipment
adopt the upright structure
5.Butyl extruder machine adopt Siemens brand,stable performance.
6.Butyl extruder is suitable for square, rectangular, shaped, arc
and kinds of aluminum frames.
7.Automatically filter debris, keep spreading evently.
8.Automatically alarm system, reminding adding butyl
Technical Data of butyl spreading machine
| Diameter of butyl cylinder | 20mm |
| Speed | 5-47m/min |
| Aluminum spacer width | 6A-27A |
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Air pressure | >0.6MPa |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Dimension | 2800*700*900mm |
| Total power | 380V, 5KW, 50HZ |
Related product
Butyl Extruder Machine LJTB 03
Main feature
• PLC control system, touch screen interface
• Frequency control system
• Automatic centering and clamping structure
• Loading capacity up to 14KG, saving time for feeding glue
• Adopt five steps to control convey
• Preheating function,glue cylinder limit function,alarm system
• Covey and gluing mechanism adopts the latest design
• Arc frame coating structure
• Imported pneumatic and hydraulic supercharging system
Technical data
Squeeze pressure | 10-18MPa |
Temperature | 110~140℃ |
Aluminum spacer width | 6A-27A |
Speed | 0-40m/min |
Diameter of butyl cylinder | 200mm |
Air supply | 0.4m³/min |
Air pressure | ≥0.6MPa |
Total power | 380V, 5KW,50HZ |
Dimension | 2600×680×1100mm(L×W×H) |
weight | 650kg |
